Throttle Body: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new throttle body (TB) gasket.
  2. Install the throttle body (TB), then install and tighten the throttle body (TB) bolts in the sequence shown.

    Torque

    : 89 lb.in (10 Nm)

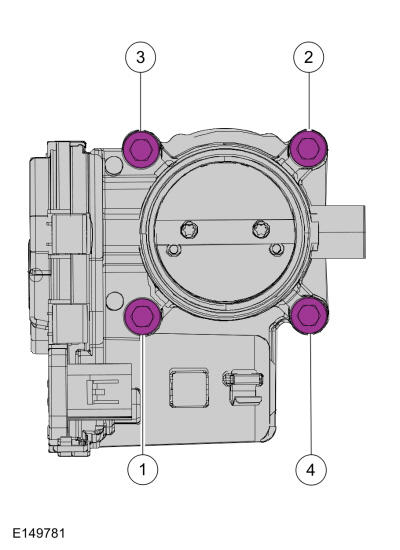

    Fig 1: Throttle Body Bolt Tightening Sequence
    GFD266982Courtesy of FORD MOTOR CO.
  3. Connect the throttle body (TB) electrical connector.
  4. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
