Fuel Charging and Controls - Component Location
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

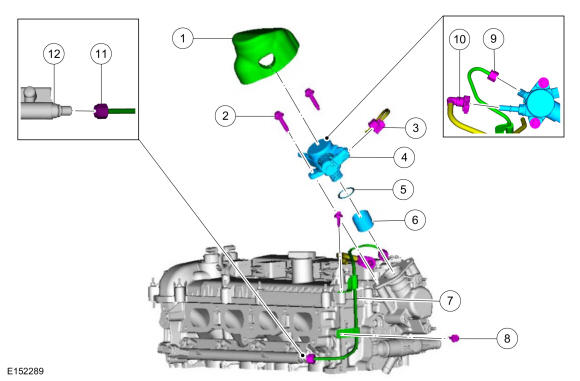

High-pressure fuel pump 2.0L Gasoline Direct Injection (GDI)
| Item | Description |
|---|---|
| 1 | High-pressure fuel pump noise insulator |
| 2 | High-pressure fuel pump bolt (2 required) |
| 3 | High-pressure fuel pump electrical connector |
| 4 | High-pressure fuel pump |
| 5 | High-pressure fuel pump O-ring seal |
| 6 | High-pressure fuel pump roller tappet |
| 7 | High-pressure fuel tube |
| 8 | High-pressure fuel tube bracket bolt (2 required) |
| 9 | High-pressure fuel tube-to-high-pressure fuel pump flare nut |
| 10 | Fuel jumper tube-to-high-pressure fuel pump quick connect coupling |
| 11 | High-pressure fuel tube-to-fuel rail flare nut |
| 12 | Fuel rail |

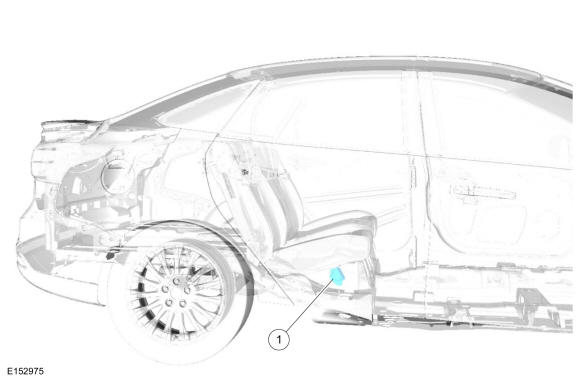

FPDM
| Item | Description |
|---|---|
| 1 | FPDM |

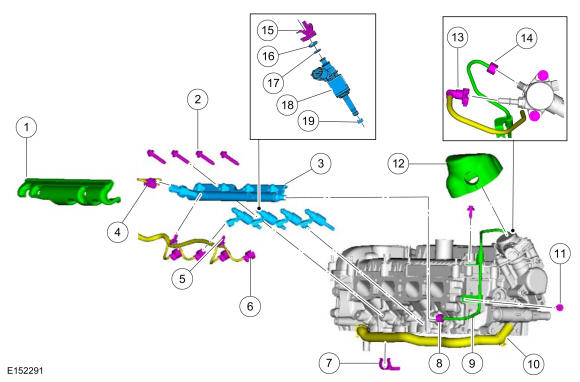

Fuel Rail 2.0L Gasoline Direct Injection (GDI)
| Item | Description |
|---|---|
| 1 | Fuel rail noise insulator |
| 2 | Fuel rail bolt (4 required) |
| 3 | Fuel rail |
| 4 | FRP electrical connector |
| 5 | Fuel injector jumper harness retainer (2 required) |
| 6 | Fuel injector electrical connector (4 required) |
| 7 | Coolant bypass hose retainer clip |
| 8 | High-pressure fuel tube-to-fuel rail flare nut |
| 9 | High-pressure fuel tube |
| 10 | Coolant bypass hose |
| 11 | High-pressure fuel tube bracket bolt (2 required) |
| 12 | High-pressure fuel pump noise insulator |
| 13 | Fuel jumper tube-to-high-pressure fuel pump quick connect coupling |
| 14 | High-pressure fuel tube-to-high-pressure fuel pump flare nut |
| 15 | Fuel injector retainer clip (4 required) |
| 16 | Upper fuel injector O-ring seal (4 required) |
| 17 | Upper fuel injector O-ring seal support ring (4 required) |
| 18 | Fuel injector (4 required) |
| 19 | Lower fuel injector Teflon® seal (4 required) |

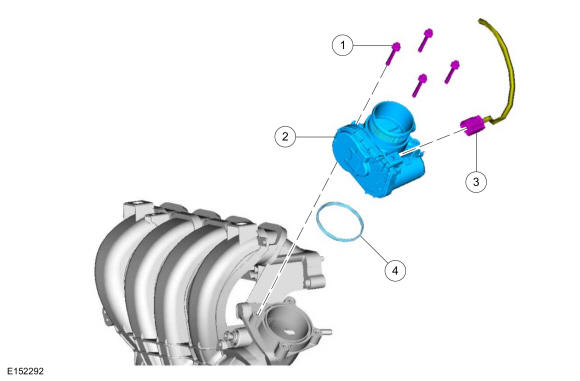

Throttle Body (TB) 2.0L Gasoline Direct Injection (GDI)
| Item | Description |
|---|---|
| 1 | Throttle Body (TB) bolt (4 required) |
| 2 | Throttle Body (TB) |
| 3 | Throttle Body (TB) electrical connector |
| 4 | Throttle Body (TB) gasket |
