Thermostat Housing: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
-
NOTE: If equipped.

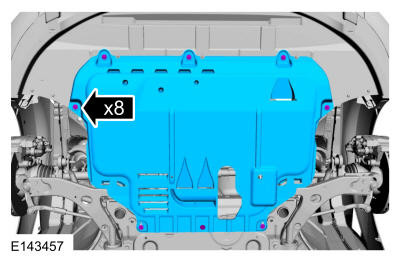

Remove the retainers and the underbody shield.

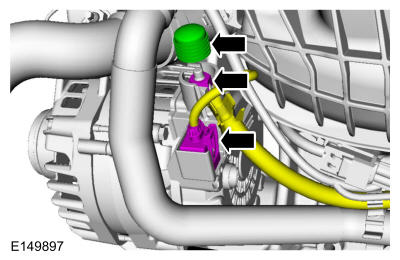

- Disconnect the electrical connector. Remove the protective cap and the battery cable faster and cable.
Torque
: 150 lb.in (17 Nm)
-
NOTE: Cover the generator to prevent coolant contamination and possible damage to generator.
Completely cover the generator with waterproof plastic.

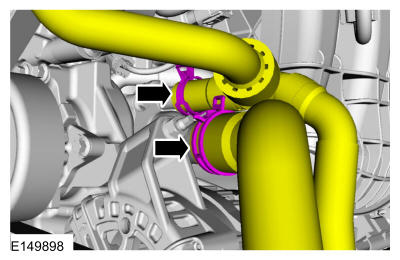

- Release the clamps and disconnect the coolant hoses from the thermostat housing. Use the General Equipment: Hose Clamp Remover/Installer

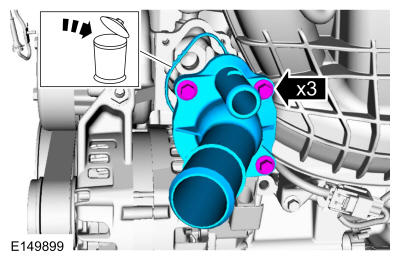

- Remove the bolts and the thermostat housing.
Torque
: 89 lb.in (10 Nm)
