Cooling Fan Motor and Shroud: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions .
Refer to: Jacking and Lifting - Overview .

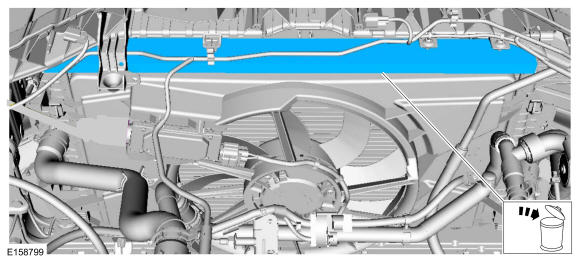

Remove and discard the foam pad.

Courtesy of FORD MOTOR COMPANY

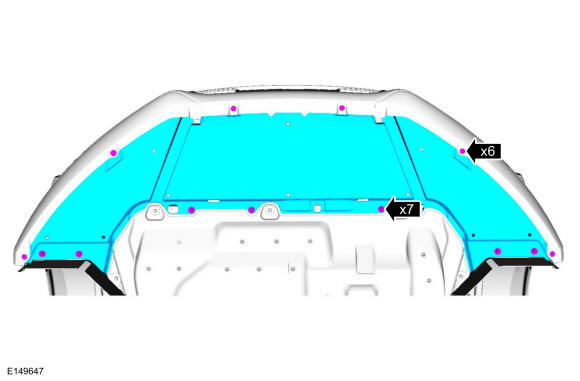

Remove the pin-type retainers, the screws and the lower radiator air deflector.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

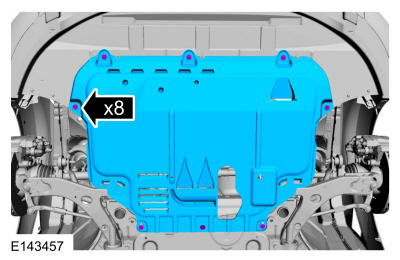

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connector and detach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

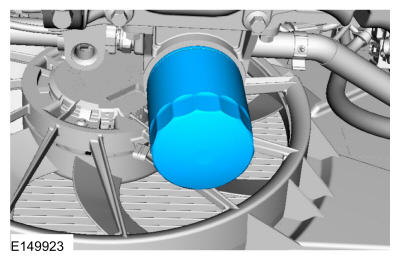

- Remove the oil filter.
  Torque

  : 71 lb.in (8 Nm)
- Angle
  : 180°
Courtesy of FORD MOTOR COMPANY

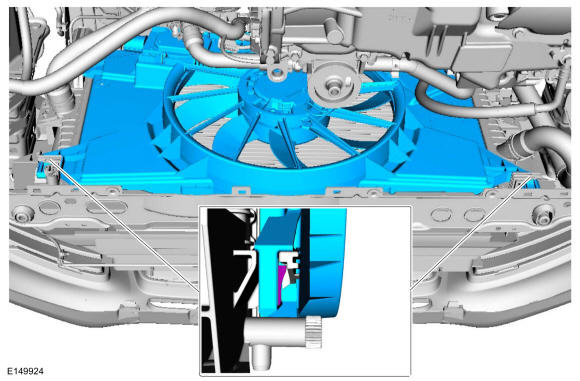

Release the lower radiator locking tabs and raise the cooling fan above the retaining clips. Remove the cooling fan motor and shroud.
