Coolant Pump: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions .
Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
NOTE: If equipped.

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Release the tabs and position the degas bottle aside.

Courtesy of FORD MOTOR COMPANY

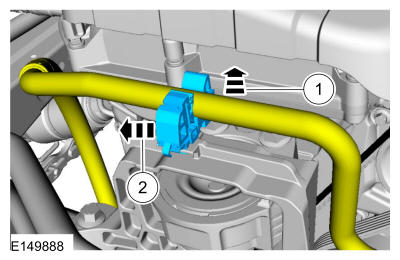

1. Unclip the A/C line from the support bracket.
2. Remove the A/C support bracket.
Courtesy of FORD MOTOR COMPANY
Remove the engine mount bolts.

Courtesy of FORD MOTOR COMPANY

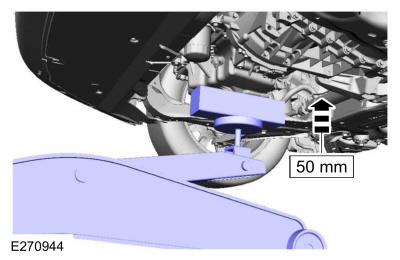

Using a floor jack and wooden block, support and raise the engine. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
Loosen the coolant pump pulley bolts. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

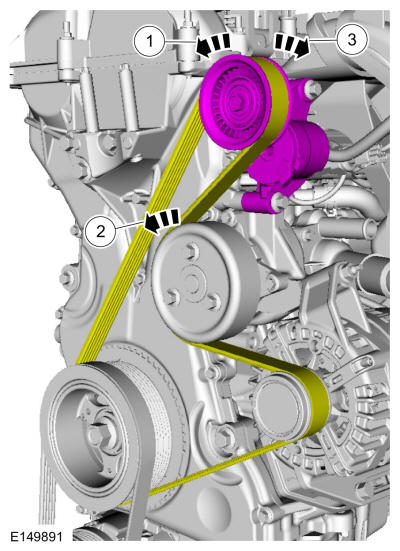

NOTE: Position the accessory drive belt so no coolant will drip on the belt, or the belt may be contaminated.
1. Using a suitable tool retract the accessory drive belt tensioner.
2. Position aside the accessory drive belt.
3. Release the accessory drive belt tensioner.
Courtesy of FORD MOTOR COMPANY
Remove the bolts and the accessory drive belt tensioner

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the coolant pump pulley.

Courtesy of FORD MOTOR COMPANY

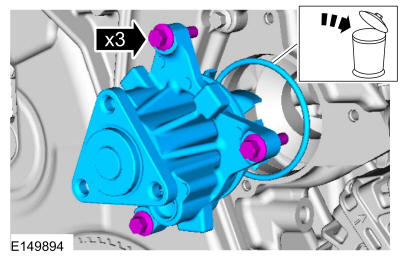

Remove the bolts and the coolant pump. Discard the O-ring seal.

Courtesy of FORD MOTOR COMPANY
