Coolant Pump: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

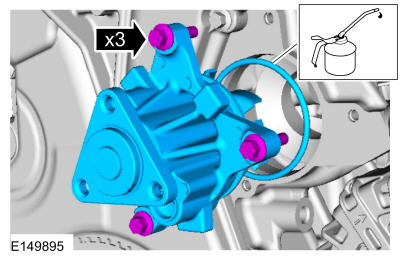

Lubricate the O-ring seal with clean engine coolant. Install the coolant pump and the bolts.
Material

: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

Material

: Motorcraft® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

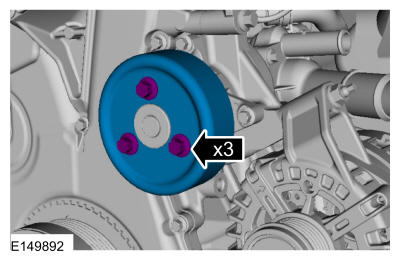

Install the coolant pump pulley.

Courtesy of FORD MOTOR COMPANY

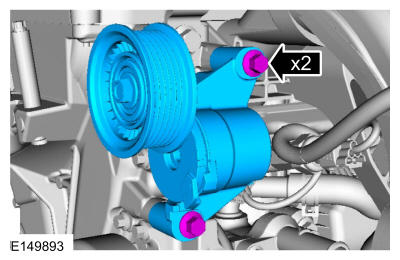

Install the accessory drive belt tensioner.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

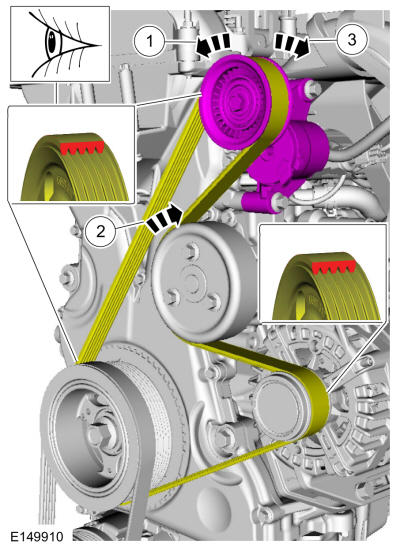

NOTE: Position the accessory drive belt so no coolant will drip on the belt, or the belt may be contaminated.
1. Using a suitable tool retract the accessory drive belt tensioner.
2. Install the accessory drive belt.
3. Release the accessory drive belt tensioner.
Courtesy of FORD MOTOR COMPANY

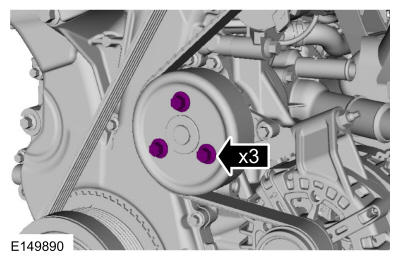

Tighten the coolant pump pulley bolts.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Lower and remove the floor jack. Use the General Equipment: Trolley Jack

Courtesy of FORD MOTOR COMPANY

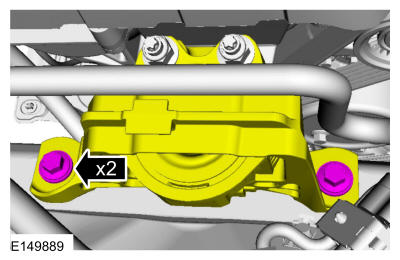

Install the engine mount bolts.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

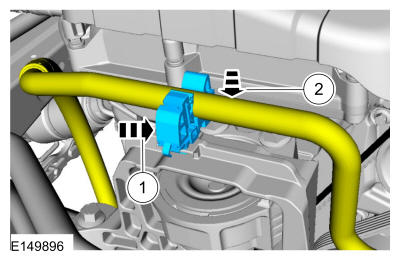

1. Install the A/C support bracket.
2. Fasten the A/C line into the support bracket.
Courtesy of FORD MOTOR COMPANY

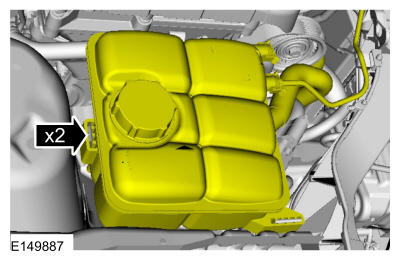

Install the degas bottle into the retaining tabs.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

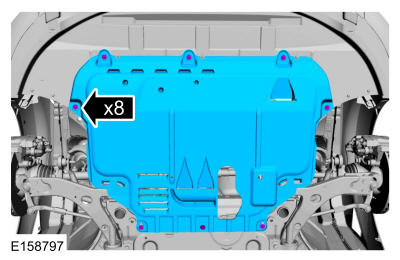

Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Fill and bleed the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
