Block Heater: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions .
Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

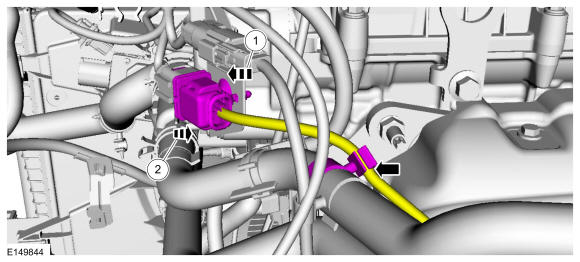

1. Detach the electrical connector pin-type retainer.
2. Disconnect the electrical connector and remove the wiring harness retainer. Position the wiring harness aside.
Courtesy of FORD MOTOR COMPANY

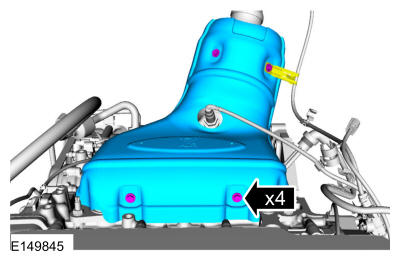

Remove the bolts and the exhaust manifold heat shield.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the component before removal.

NOTE: Make sure that the component is installed to the position noted before removal.

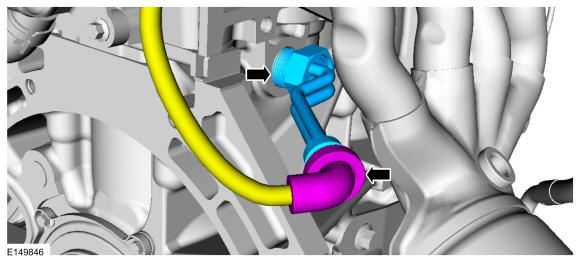

Disconnect the electrical connector and remove the block heater.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
