Block Heater: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

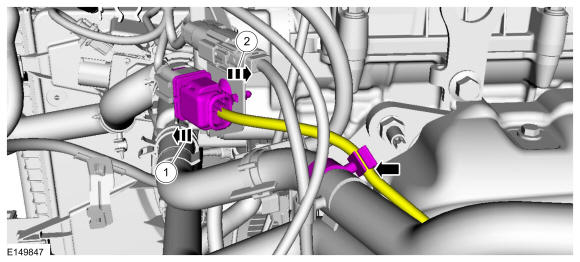

    1. Connect the electrical connector and install the pin-type retainer.
    2. Connect the wiring harness retainer.
    GFD266792Courtesy of FORD MOTOR COMPANY
  3. Fill and bleed the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding  .
