Section 1500 (Engine - 2.0L DURATEC-He (125KW/170PS) - Mi4): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1585AE Powertrain Lift
Courtesy of FORD MOTOR COMPANY	300-OTC1819E2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	303-D089 (D93P-6001-A3) Spreader Bar
Magnetic Socket
Adjustable Mounting Arm
Hose Clamp Remover/Installer
Wooden Block

1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions .

2. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
3. Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
4. Release the fuel system pressure. Refer to: Fuel System Pressure Release .

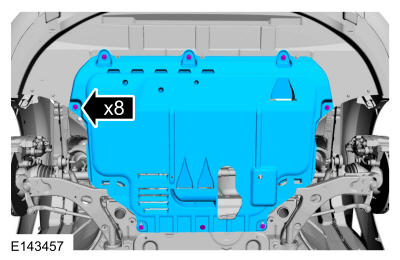

5. Remove the bolts and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

6. Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding . Refer to: Cooling System Draining, Filling and Bleeding .
7. Remove the following items:
   1. Remove the degas bottle. Refer to: Degas Bottle .
   2. Remove the battery tray. Refer to: Battery Tray .
   3. Remove the air cleaner and the air cleaner outlet pipe. Refer to: Air Cleaner . Refer to: Air Cleaner Outlet Pipe .

8. If equipped with automatic transmission. Detach the wire retainer.

   Courtesy of FORD MOTOR COMPANY

9. Remove the nut for the ground strap.

   Courtesy of FORD MOTOR COMPANY

10. Detach the ground cable retainer.

    Courtesy of FORD MOTOR COMPANY

11. Remove the PCM. Refer to: Powertrain Control Module (PCM) .
12. NOTE: The electrical connector is located behind the PCM case.

    Disconnect the engine harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

13. Detach the ground cable retainer and remove the bolts for the ground cable.

    Courtesy of FORD MOTOR COMPANY

14. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

15. Remove and position aside the wiring harness.

    Courtesy of FORD MOTOR COMPANY

16. Remove the hose clips, disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

17. Disconnect the coolant hoses from the heater core, detach the hose retainers.

    Courtesy of FORD MOTOR COMPANY

18. If equipped. Disconnect the block heater electrical connector.

    Courtesy of FORD MOTOR COMPANY

19. Remove the HO2S. Refer to: Heated Oxygen Sensor (HO2S) .
20. Disconnect the catalyst monitor sensor electrical connector and wire retainer.

    Courtesy of FORD MOTOR COMPANY

21. Remove the bolts, and position aside the catalyst monitor sensor wiring harness and remove the exhaust manifold heat shield.

    Courtesy of FORD MOTOR COMPANY

22. Remove the bolts for the exhaust manifold.

    Courtesy of FORD MOTOR COMPANY

23. NOTE: Discard the gasket.

    Remove the catalytic converter manifold-to-muffler and tailpipe nuts.

    Courtesy of FORD MOTOR COMPANY

24. Remove the tailpipe mount bracket bolts.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: Discard the catalytic converter nuts and gasket.

    Remove and discard the nuts, and position aside the manifold.

    Courtesy of FORD MOTOR COMPANY

26. Remove and discard the manifold stud bolts.

    Courtesy of FORD MOTOR COMPANY

27. Disconnect the fuel tube quick release coupling. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

28. Disconnect the electrical connector and the fuel tube quick release coupling. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

29. Disconnect the vacuum tube quick release coupling at the rear of the intake manifold.

    Courtesy of FORD MOTOR COMPANY

30. If equipped with an automatic transmission. Disconnect the selector lever cable end from the manual control lever.

    Courtesy of FORD MOTOR COMPANY

31. If equipped with an automatic transmission. Detach the selector lever cable retainer.

    Courtesy of FORD MOTOR COMPANY

32. If equipped with an automatic transmission. Detach the selector lever cable retainer.

    Courtesy of FORD MOTOR COMPANY

33. If equipped with an automatic transmission. Remove the bolts and position aside the shift cable.

    Courtesy of FORD MOTOR COMPANY

34. NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

    If equipped with a manual transmission. Disconnect the clutch hydraulic tube.

    Courtesy of FORD MOTOR COMPANY

35. If equipped with a manual transmission. Disconnect the shift cable, remove the nuts and position aside.

    Courtesy of FORD MOTOR COMPANY

36. Refer to: Front Halfshaft RH . Refer to: Front Halfshaft LH .
37. Remove the A/C pipe bracket bolt.

    Courtesy of FORD MOTOR COMPANY

38. NOTE: Discard the O-ring seals.

    Remove the nuts and the bolt, disconnect the A/C pipes from the A/C compressor.

    Courtesy of FORD MOTOR COMPANY

39. Loosen the clamp, remove the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

40. Drain and install the drain plug.

    Torque

    : 20 lb.ft (27 Nm)

    Courtesy of FORD MOTOR COMPANY

41. Remove and discard the engine oil filter.

    Courtesy of FORD MOTOR COMPANY

42. Remove the coolant fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .
43. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the oil pan-to-transmission bolt.

    Courtesy of FORD MOTOR COMPANY

44. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the oil pan bolts.

    Courtesy of FORD MOTOR COMPANY

45. Remove the engine mounting roll restrictor bolts.

    Courtesy of FORD MOTOR COMPANY

46. NOTE: Position a block of wood under the transmission.

    Use Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Wooden Block. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

47. • Remove the nuts.
    • Remove the bolts and the engine mount.

    Courtesy of FORD MOTOR COMPANY

48. Remove the transmission mount bolt.

    Courtesy of FORD MOTOR COMPANY

49. Lower the powertrain from the vehicle.
50. Clean and inspect the catalytic converter flange. Refer to: Exhaust Manifold Cleaning and Inspection .
51. If equipped with automatic transmission. Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

52. Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

53. Remove the starter motor. Refer to: Starter Motor .
54. Remove the stater motor isolator.

    Courtesy of FORD MOTOR COMPANY

55. NOTE: Rotate the engine in a clockwise direction only or engine damage may occur.
    NOTE: Note the position of the components before removal.
    NOTE: If equipped with automatic transmission.

    Remove the torque converter nut and discard. Use the General Equipment: Magnetic Socket

    Courtesy of FORD MOTOR COMPANY

56. Install the engine lift equipment. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away., 303-D089 (D93P-6001-A3) Spreader Bar.

    Courtesy of FORD MOTOR COMPANY

57. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the engine-to-transmission bolts.

    Courtesy of FORD MOTOR COMPANY

58. Remove the nut and ground wire.

    Courtesy of FORD MOTOR COMPANY

59. NOTE: Automatic transmission shown, manual transmission similar.
    • If equipped with a automatic transmission, remove the 4 bellhousing-to-engine fasteners.
    • If equipped with a manual transmission, remove the 5 bellhousing-to-engine fasteners.

    Courtesy of FORD MOTOR COMPANY

60. Separate the transaxle from the engine.
