Valve Cover: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

Remove the ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
Disconnect the VCT oil control solenoid electrical connectors.

Courtesy of FORD MOTOR COMPANY
Disconnect the CMP sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY
Detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
Disconnect the quick release coupling fuel supply tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

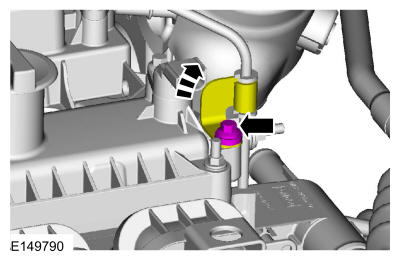

Remove the bolt, position the fuel tube clamp aside.

Courtesy of FORD MOTOR COMPANY
Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the engine appearance cover mounting ball stubs.

Courtesy of FORD MOTOR COMPANY
NOTE: Discard the valve cover gasket.

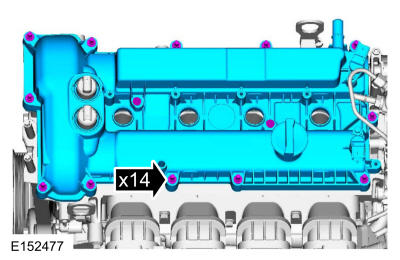

Loosen the fasteners and remove the valve cover.

Courtesy of FORD MOTOR COMPANY
NOTE: The Variable Camshaft Timing (VCT) solenoid seals should only be replaced if they are damaged.

Inspect the VCT oil control solenoid seals for damaged. If damaged, using the special tools, remove the VCT oil control solenoid seals and discard. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

Courtesy of FORD MOTOR COMPANY
