Timing Drive Components: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.

NOTE: Engines built prior to 12/9/2014 are equipped with diamond washers on both sides of the crankshaft sprocket. Engines built on or after 12/9/2014 have a laser etched crankshaft sprocket and do NOT require diamond washers. If an engine built prior to 12/9/2014 requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

If it is necessary to install a new timing chain tensioner, a cast iron tensioner is to be replaced with an aluminum tensioner (6K254). The existing bolts must be discarded and replaced with new bolts (6K282).

With the vehicle in NEUTRAL, position it on a hoist Refer to: Jacking and Lifting - Overview .
Remove the following items:
1. Refer to: High-Pressure Fuel Pump .
2. Refer to: Engine Front Cover .

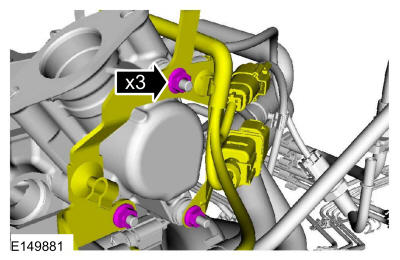

Remove the nuts and position the bracket aside.

Courtesy of FORD MOTOR COMPANY

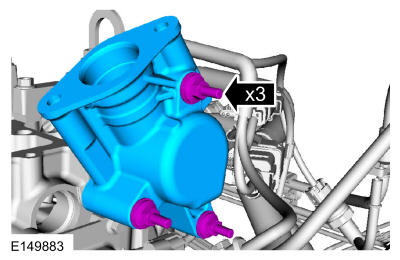

Remove the stud bolts and the fuel injection pump housing.

Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Alignment Tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

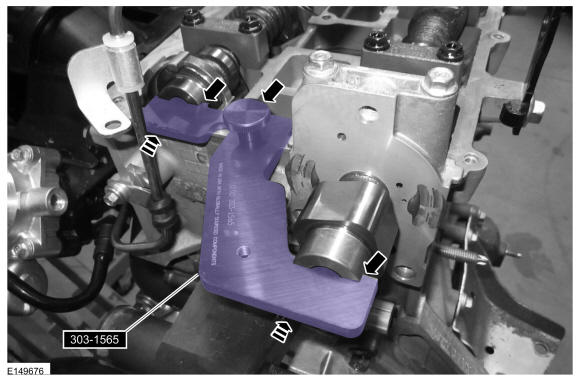

Install the Camshaft Alignment Tool into the rear of both of the camshaft slots as shown and tighten the retainer. Use Special Service Tool: 303-1565 Alignment Tool, Camshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Alignment Tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

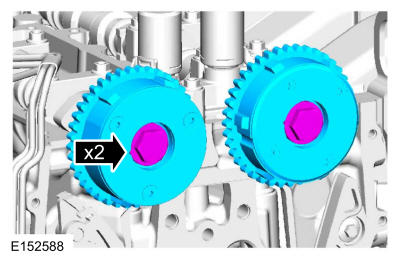

Using the flats on the exhaust and intake camshaft to prevent camshaft rotation, loosen the exhaust and intake VCT unit bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with cast iron timing chain tensioner.
1. Using a small pick, release and hold the ratchet mechanism.
2. While holding the ratchet mechanism in the released position, compress the tensioner by pushing the timing chain arm toward the tensioner.
3. Insert a holding pin into the hole to retain the tensioner.
Courtesy of FORD MOTOR COMPANY
NOTE: If it is necessary to install a new timing chain tensioner, a cast iron tensioner is to be replaced with an aluminum tensioner (6K254). The existing bolts must be discarded and replaced with new bolts (6K282).

NOTE: If equipped with cast iron timing chain tensioner.

Remove the bolts and the timing chain tensioner.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with aluminum timing chain tensioner.

Remove the bolts and the timing chain tensioner.

Courtesy of FORD MOTOR COMPANY

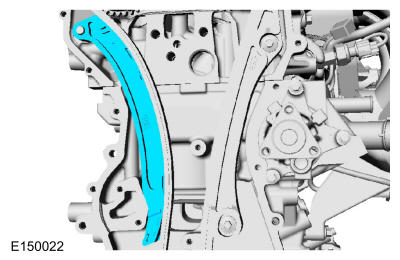

Remove the timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY

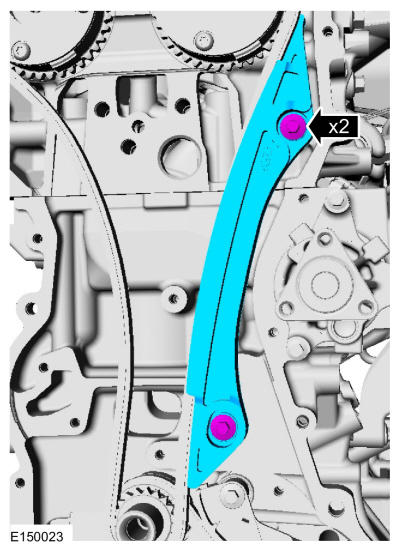

Remove the bolts and the timing chain guide.

Courtesy of FORD MOTOR COMPANY

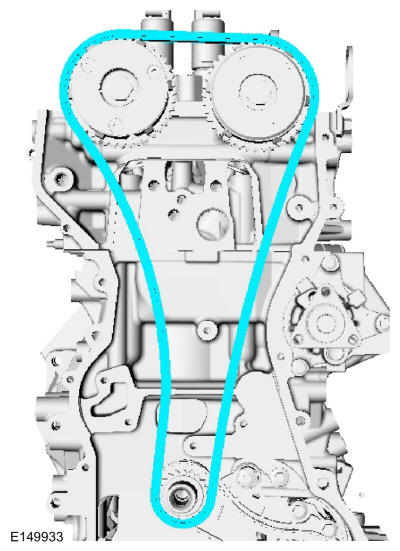

Remove the timing chain.

Courtesy of FORD MOTOR COMPANY
