Oil Pump: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

NOTE: Automatic transmission shown, manual transmission similar.

With the engine in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the engine front cover. Refer to: Engine Front Cover .

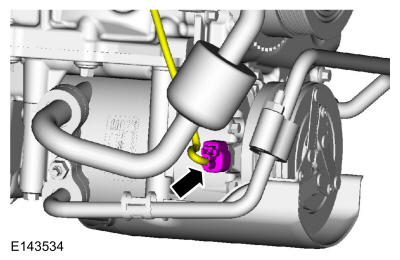

Disconnect the A/C compressor electrical connector.

Courtesy of FORD MOTOR COMPANY

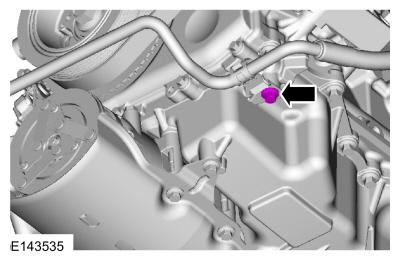

Remove the A/C line bracket bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Support the A/C compressor. Do not allow the A/C compressor to hang by the A/C lines or damage to the A/C compressor and tubes may occur.

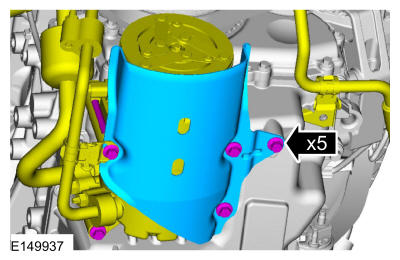

Remove the bolts and the A/C compressor shield, position aside the A/C compressor.

Courtesy of FORD MOTOR COMPANY

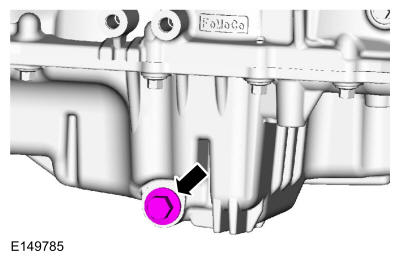

Drain and install the drain plug.
Torque

: 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY
Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY

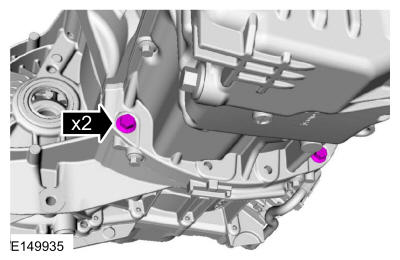

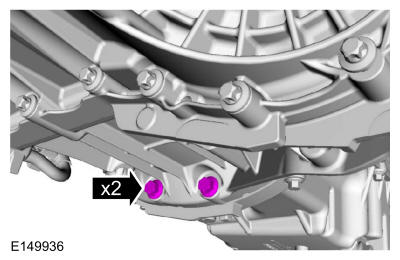

Remove the oil pan-to-transmission bolt.

Courtesy of FORD MOTOR COMPANY

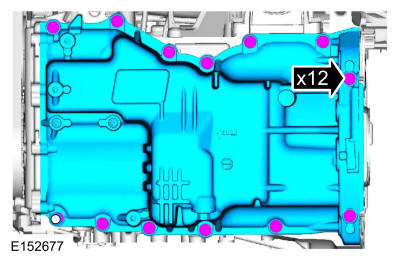

Remove the oil pan bolts.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the oil pan.

Courtesy of FORD MOTOR COMPANY
NOTE: Discard the gasket.

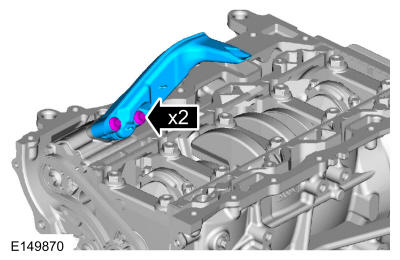

Remove the bolts and the oil pump screen and pickup tube.

Courtesy of FORD MOTOR COMPANY

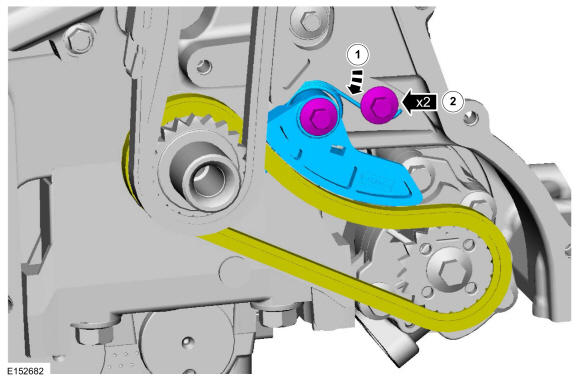

1. Push the tensioner spring down and release the spring from under the shoulder bolt.
2. Remove the 2 shoulder bolts and the tensioner and chain.
Courtesy of FORD MOTOR COMPANY

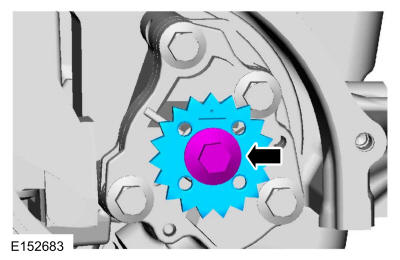

Remove the bolt and oil pump sprocket.

Courtesy of FORD MOTOR COMPANY

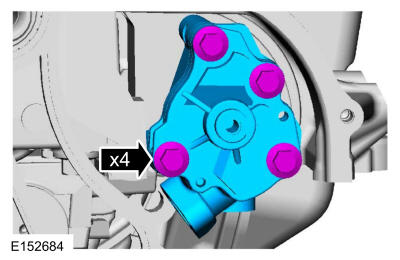

Remove the bolts and the oil pump.
