Oil Pressure Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

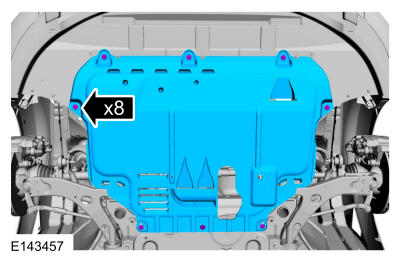

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

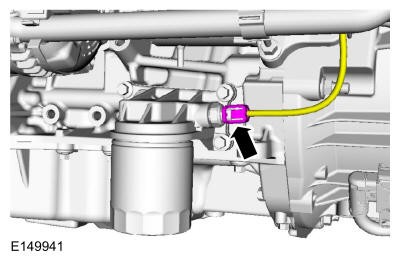

Disconnect the oil pressure switch electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Apply thread sealant to the oil pressure switch threads.

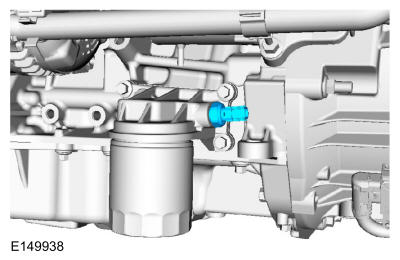

Remove the oil pressure switch.

Material

: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
