Oil Pan: Removal

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Remove the oil level indicator.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: This step does not apply if the engine front cover is removed.

   Remove the air cleaner and the air cleaner outlet pipe. Refer to: Air Cleaner . Refer to: Air Cleaner Outlet Pipe .

   Vehicles with automatic transmission

4. NOTE: This step does not apply if the engine front cover is removed.

   Disconnect the selector lever cable end from the manual control lever.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: This step does not apply if the engine front cover is removed.

   Remove the bolts and position aside the shift cable.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

6. NOTE: To prevent damage to the transmission, do not loosen the transmission-to-engine bolts more than (0.197 in) 5 mm.
   NOTE: This step does not apply if the engine front cover is removed.

   Loosen the bolts.

   Distance

   : 0.197in (5mm)

   Courtesy of FORD MOTOR COMPANY

7. NOTE: This step does not apply if the engine front cover is removed.

   Remove the ground wire nut.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: This step does not apply if the engine front cover is removed.

   Loosen the stud bolt.

   Distance

   : 0.197in (5mm)

   Courtesy of FORD MOTOR COMPANY

9. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
10. Disconnect the A/C compressor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

11. Remove the A/C pipe bracket bolt.

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Support the A/C compressor. Do not allow the A/C compressor to hang by the A/C lines or damage to the A/C compressor and tubes may occur.

    Remove the bolts and the A/C compressor shield, position aside the A/C compressor.

    Courtesy of FORD MOTOR COMPANY

13. Drain and install the drain plug.

    Torque

    : 20 lb.ft (27 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Remove and discard the engine oil filter.

    Courtesy of FORD MOTOR COMPANY

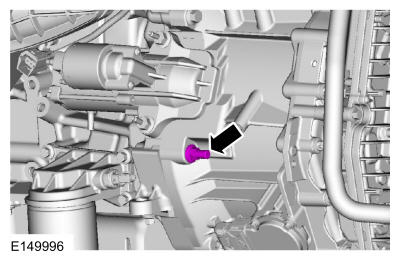

15. Remove the oil pan-to-transmission bolt.

    Courtesy of FORD MOTOR COMPANY

16. Remove the oil pan bolts.

    Courtesy of FORD MOTOR COMPANY

17. NOTE: This step does not apply if the engine front cover is removed.

    Remove the bolts and the support bracket.

    Courtesy of FORD MOTOR COMPANY

18. NOTE: This step does not apply if the engine front cover is removed.

    Loosen the bolts.

    Distance

    : 0.197in (5mm)

    Courtesy of FORD MOTOR COMPANY

19. NOTE: This step does not apply if the engine front cover is removed.

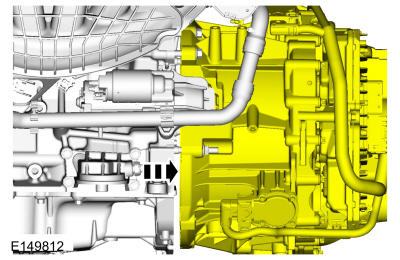

    Separate the engine and transaxle.

    Distance

    : 0.197in (5mm)

    Courtesy of FORD MOTOR COMPANY

20. NOTE: This step does not apply if the engine front cover is removed.

    Remove the engine front cover-to-oil pan bolts.

    Courtesy of FORD MOTOR COMPANY

21. Remove the bolts and the oil pan.

    Courtesy of FORD MOTOR COMPANY

22. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 RPM, to clean the oil pan. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.

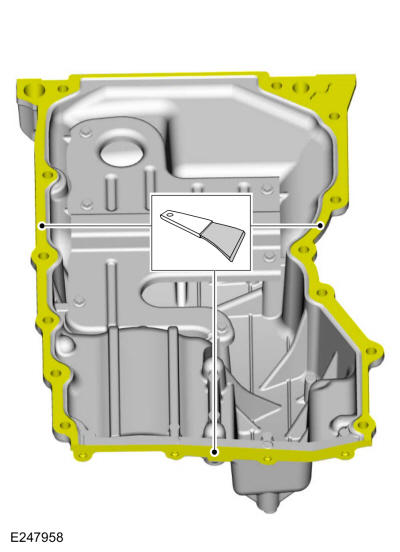

    • Make sure that the mating faces of the oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

      Material

      : Motorcraft® Silicone Gasket Remover / ZC-30-A

      Material

      : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Material

      : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    • Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.

    Courtesy of FORD MOTOR COMPANY

23. NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

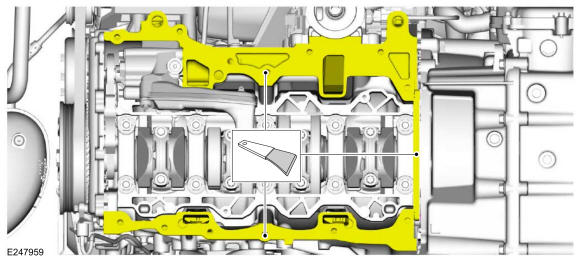

    Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material

    : Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material

    : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

24. NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

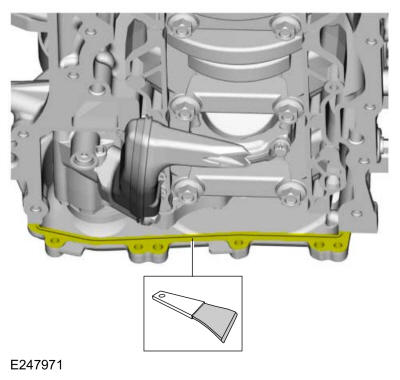

    Make sure that the mating faces of the engine front cover are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material

    : Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material

    : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY
