Oil Pan: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: Do not apply sealant to oil pan-to-engine front cover mating surface if the engine front cover is removed.

NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

NOTE: Apply sealant to the oil pan-to-engine block and to the oil pan-to-engine front cover mating surfaces.

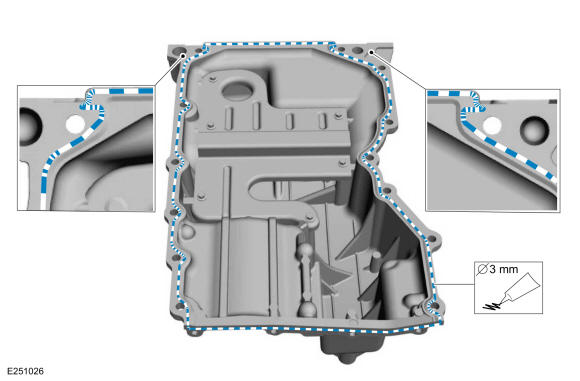

Apply a 3 mm bead of silicone sealant.

Material

: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Install the oil pan and the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY
NOTE: The engine front cover-to-oil pan fasteners must be tightened first to align the front surface of the oil pan flush with the front surface of the engine block.

NOTE: This step does not apply if the engine front cover is removed.

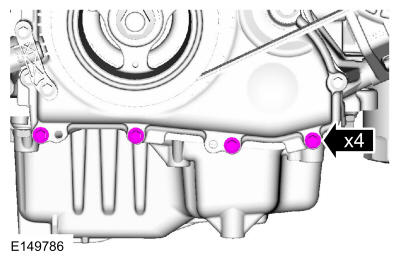

Install the engine front cover-to-oil pan bolts.

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the bolts in sequence shown.
Torque

: 177 lb.in (20 Nm)

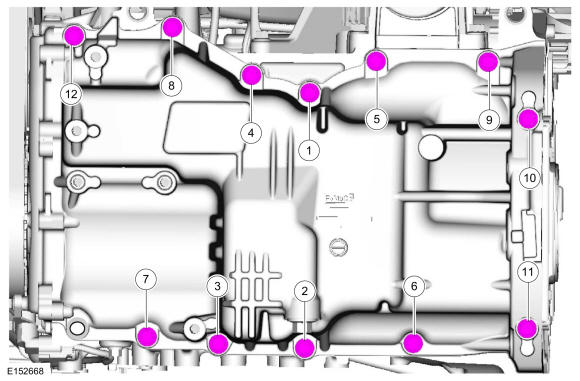

Fig 1: Oil Pan Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: This step does not apply if the engine front cover is removed.

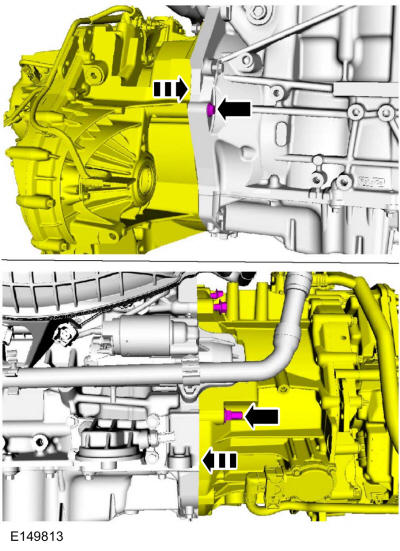

NOTE: Alternate tightening the LH bellhousing-to-engine and RH engine-to-bellhousing lower bolts to draw the transaxle and engine together.

Tighten the bolts and the stud bolt.

Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the engine-to-transmission bolt.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

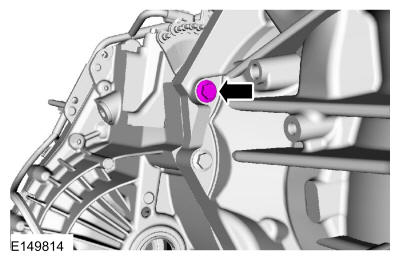

Install the oil pan-to-transmission bolt.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step does not apply if the engine front cover is removed.

Install the engine mounting restrictor.

Torque

: 63 lb.ft (86 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step does not apply if the engine front cover is removed.

Tighten the bolt.

Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

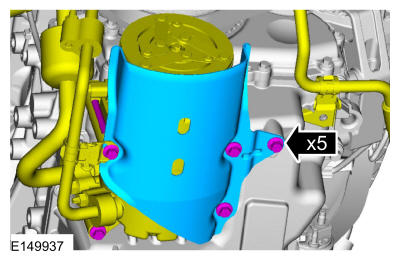

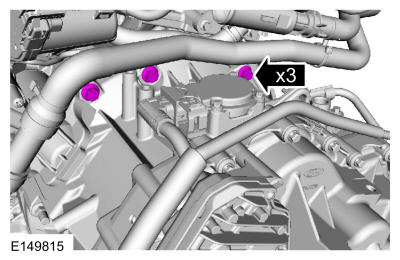

Position back the A/C compressor, install the compressor shield and the bolts.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the A/C pipe bracket bolt.
Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the A/C compressor electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.

Install a new engine oil filter.

Material

: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Torque

:Stage 1: 71 lb.in (8 Nm) Stage 2: 180°

Courtesy of FORD MOTOR COMPANY
NOTE: This step does not apply if the engine front cover is removed.

Connect the ground wire and install the nut.

Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
NOTE: This step does not apply if the engine front cover is removed.

Install the bolts.

Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with automatic transmission
NOTE: This step does not apply if the engine front cover is removed.

Position back the selector lever cable and install the bolts.

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step does not apply if the engine front cover is removed.

Connect the selector lever cable end to the manual control lever.

Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: This step does not apply if the engine front cover is removed.

Refer to: Air Cleaner . Refer to: Air Cleaner Outlet Pipe .

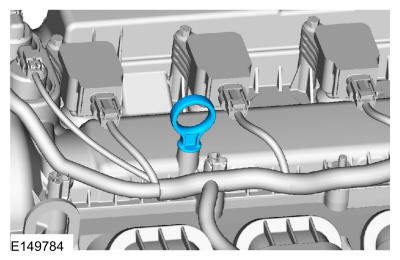

Install the oil indicator.

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil.
Material

: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
