Removal And Installation: Flywheel: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the clutch. Refer to: CLUTCH DISC AND PRESSURE PLATE .

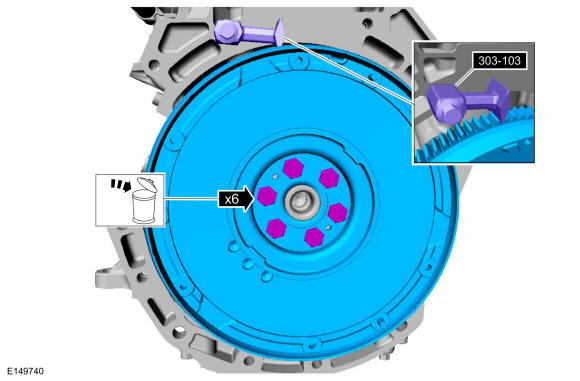

- Remove the bolts and the flywheel. Discard the bolts. Use Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
