Removal And Installation: Flexplate: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Special bolts are used for installation. Do not use standard bolts.

Install the flexplate and the new bolts. Use Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

Torque

:Stage 1: 37 lb.ft (50 Nm) Stage 2: 59 lb.ft (80 Nm) Stage 3: 83 lb.ft (112 Nm)

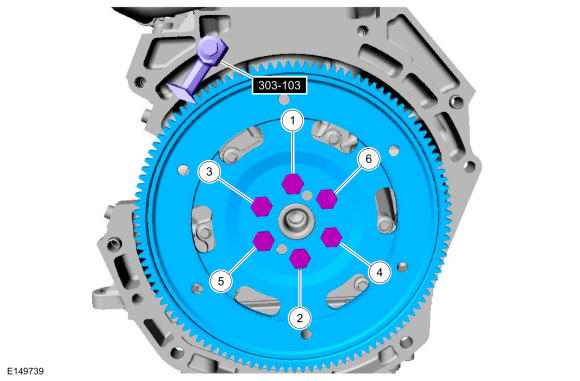

Fig 1: Flexplate Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the automatic transmission. Refer to: TRANSMISSION - 2.0L DURATEC-HE (125KW 170PS) - MI4 .
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
