Engine Mount: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

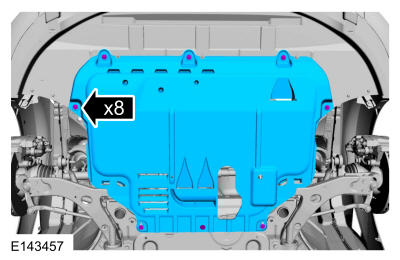

- Remove the retainers and the underbody shield.
- Release the tabs and position the degas bottle aside.
-
NOTE: Do not support the engine on the Air Conditioning (A/C) compressor.
Using a floor jack and wooden block, support the engine. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block
-
- Remove the engine mount nuts.
- Remove the bolts and the engine mount.
