Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

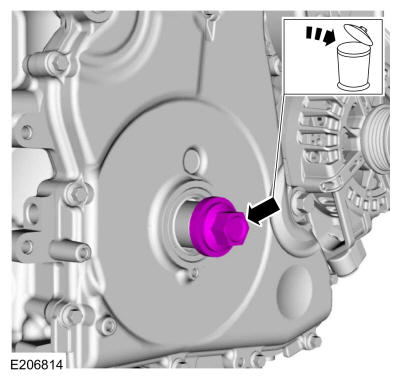

Remove and discard the crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Remove the through-bolt from the special tool.

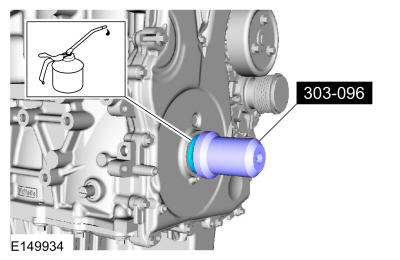

Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

Material

: Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY
Install the crankshaft pulley. Refer to: Crankshaft Pulley .
