Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

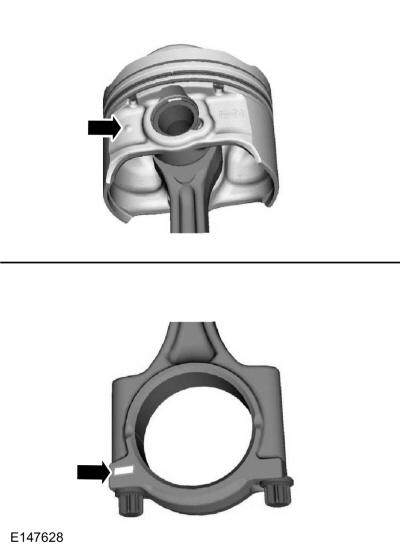

  1. Indicates front of engine.
    GFD265612Courtesy of FORD MOTOR COMPANY
  2. Install the piston to the connecting rod.
    GFD265057Courtesy of FORD MOTOR COMPANY
  3. Lubricate with clean engine oil and install the piston pin.

    Material

    : Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

    GFD265058Courtesy of FORD MOTOR COMPANY
  4. Install the piston pin retainers.
    GFD265059Courtesy of FORD MOTOR COMPANY
  5. Lubricate with clean engine oil and install the piston rings.

    Material

    : Motorcraft® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

    GFD265060Courtesy of FORD MOTOR COMPANY
  6. NOTE: The upper and lower compression rings are to be fitted with the identification marks on the upper side.
    NOTE: Arrows faces the front of the engine.
    NOTE: Align the piston rings on the piston.

    1. Upper compression ring gap location.
    2. Lower compression ring gap location.
    3. Upper oil control segment ring gap location.
    4. Expander ring gap location.
    5. Lower oil control segment ring gap location.

GFD265613Courtesy of FORD MOTOR COMPANY
