Flywheel Inspection

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge
Courtesy of FORD MOTOR COMPANY	303-103 (T74P-6375-A) Holding Tool, Flywheel T74P-77000-A TKIT-2009TC-F

Inspection

NOTE: Do not clean the dual mass flywheel with any kind of fluid, use a dry cloth only or damage to the dual mass flywheel may occur.

NOTE: Do not clean the gap between the primary and secondary mass. Only clean the bolt connection surface and the clutch surface or damage to the flywheel may occur.

NOTE: The dual mass flywheel cannot be machined.

With the dual mass flywheel installed on the engine, inspect the dual mass flywheel surface for scoring, cracks, discoloration or damage. If any of these conditions exist, install a new dual mass flywheel.
Inspect the dual mass flywheel friction control plate for damage or melting. If any of these conditions exist, install a new dual mass flywheel.
NOTE: The dual mass flywheel rotational freeplay inspection cannot be carried out if the friction control plate is damaged.

Place a reference mark on the secondary mass of the dual mass flywheel.

Courtesy of FORD MOTOR COMPANY
Using light hand pressure, rotate the secondary mass clockwise to the end of the freeplay. Place a reference mark on the primary mass of the dual mass flywheel, in line with the reference mark on the secondary mass.

Courtesy of FORD MOTOR COMPANY
Using light hand pressure, rotate the secondary mass counterclockwise to the end of the freeplay. Place a second reference mark on the secondary mass of the dual mass flywheel, in line with the reference mark on the primary mass.

Courtesy of FORD MOTOR COMPANY

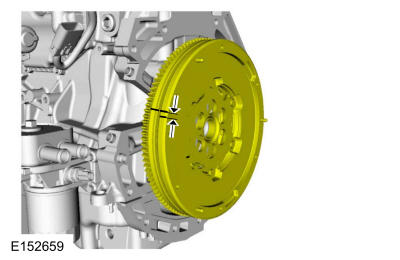

Measure the rotational freeplay between the 2 reference marks on the secondary mass of the dual mass flywheel. If the rotational freeplay exceeds 19 mm (0.750 in), install a new dual mass flywheel.

Courtesy of FORD MOTOR COMPANY

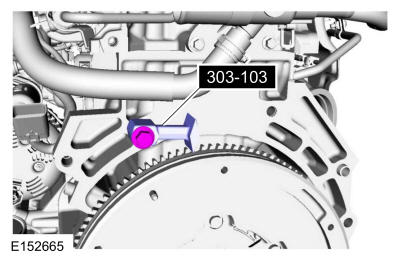

Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

Courtesy of FORD MOTOR COMPANY

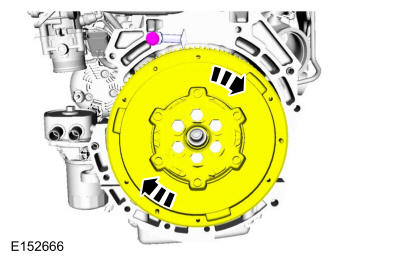

Using a suitable long screwdriver or bar, firmly rotate the secondary mass clockwise. The secondary mass should begin to engage the internal spring past the freeplay movement of 19 mm (0.750 in) maximum. The secondary mass should continue to rotate and engage the internal spring with increasing spring pressure. If the secondary mass does not rotate, install a new dual mass flywheel.

Courtesy of FORD MOTOR COMPANY

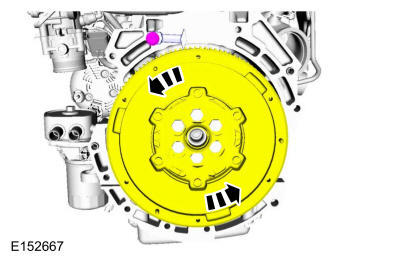

Using a suitable long screwdriver or bar, firmly rotate the secondary mass counterclockwise. The secondary mass should begin to engage the internal spring past the freeplay movement of 19 mm (0.750 in) maximum. The secondary mass should continue to rotate and engage the internal spring with increasing spring pressure. If the secondary mass does not rotate, install a new dual mass flywheel.

Courtesy of FORD MOTOR COMPANY
NOTE: Blocks must be placed under the dual mass flywheel to make sure it is level and stable.

Remove the dual mass flywheel and place it on a firm and level surface.

Courtesy of FORD MOTOR COMPANY

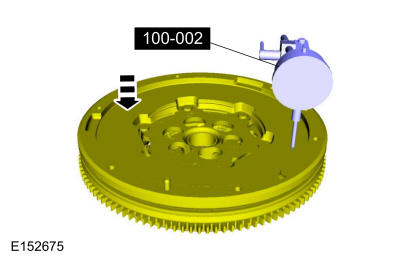

- Using the Dial Indicator Gauge with Holding Fixture, inspect the dual mass flywheel hub bushing for wear. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.
- Place a dial indicator gauge at a point on the outer upper surface of the secondary mass.
- Using light hand pressure, press downward at the opposite point on the outer upper surface of the secondary mass and note the deflection on the dial indicator gauge.
- Repeat this measurement at 120 degree intervals around the dual mass flywheel and note any deflection. If the deflection exceeds 1.5 mm (0.060 in) at any point, install a new dual mass flywheel.
Courtesy of FORD MOTOR COMPANY

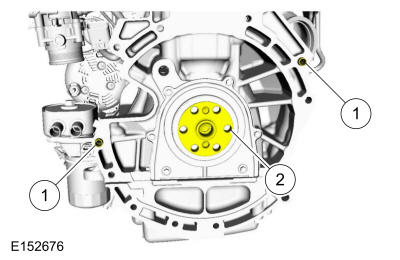

- Verify that the 2 engine dowel pins are correctly installed and are not damaged, install new dowel pins as necessary.
- Inspect the crankshaft flange for residual thread locking compound or rust, and clean as necessary.
Courtesy of FORD MOTOR COMPANY
NOTE: Inspect the dual mass flywheel crankshaft mounting flange for residual thread locking compound or rust and clean as necessary.

NOTE: Install new dual mass flywheel retaining bolts.

Loosely install the dual mass flywheel.
Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

Courtesy of FORD MOTOR COMPANY
Torque
: 83 lb.ft (112 Nm)

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
