Steering Wheel Multifunction Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

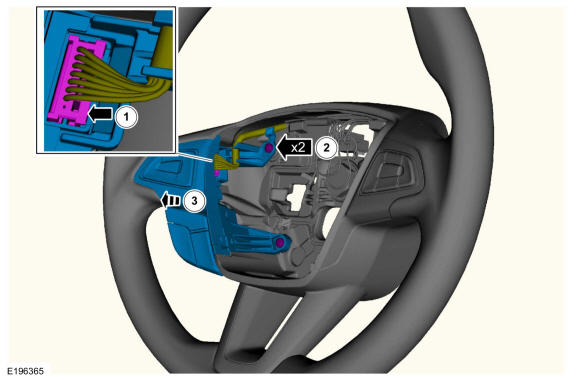

  1. NOTE: LH switch shown, RH switch similar.

    Remove the steering wheel multifunction switch.

    1. Disconnect the electrical connector.
    2. Remove the screws.
    3. Remove the steering wheel multifunction switch.

GFD264674Courtesy of FORD MOTOR COMPANY
