Steering Column Multifunction Switch LH: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column shrouds. Refer to: STEERING COLUMN SHROUDS .
  2. NOTE: Make sure that the component terminals are not bent or damaged.

    Remove the steering column multifunction switch.

    1. Remove the screws.
    2. Push in the tabs and remove the steering column multifunction switch.

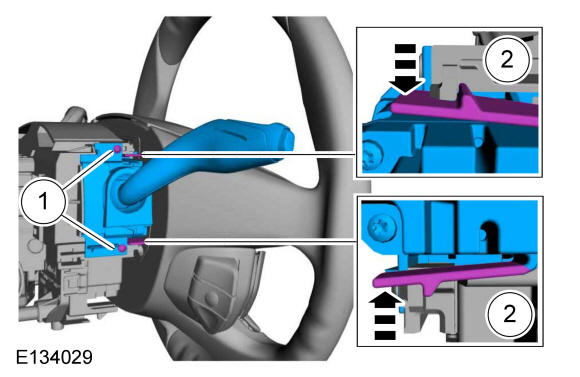

GFD264672Courtesy of FORD MOTOR COMPANY
