Ignition Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: The ignition switch lock cylinder must not be turned while the ignition switch is removed.

    Remove the steering column shrouds. Refer to: STEERING COLUMN SHROUDS .

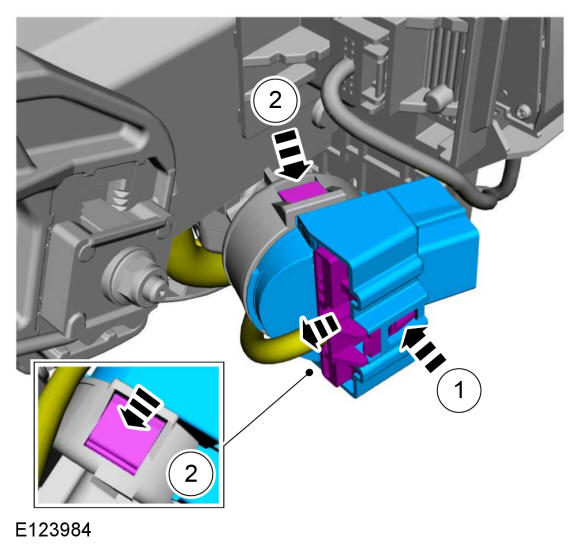

  2. Remove the ignition switch.

    1. Disconnect the ignition switch electrical connector.
    2. Push in the tabs and remove the ignition switch.

GFD264668Courtesy of FORD MOTOR COMPANY
