Ignition Switch - Vehicles With: Push Button Start: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column shrouds. Refer to: STEERING COLUMN SHROUDS .
  2. Remove the instrument panel steering column cover trim panel.

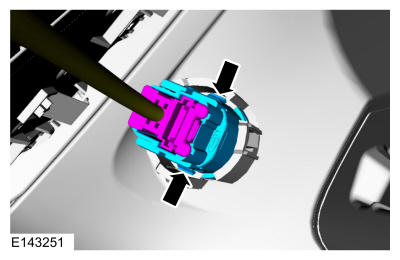

  3. From behind the instrument panel bezel, disconnect the electrical connector, release the tabs and remove the push button start ignition switch.
GFD264669Courtesy of FORD MOTOR COMPANY
