System Diagram - Push Button Start

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

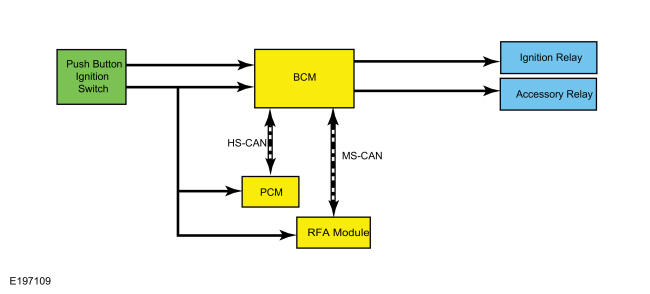

GFD264659Courtesy of FORD MOTOR COMPANY
Item Description
1 HS-CAN
2 MS-CAN
3 RFA Module
4 PCM
5 Push Button Ignition Switch
6 BCM
7 Ignition Relay
8 Accessory Relay
