System Diagram - Heated Steering Wheel

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

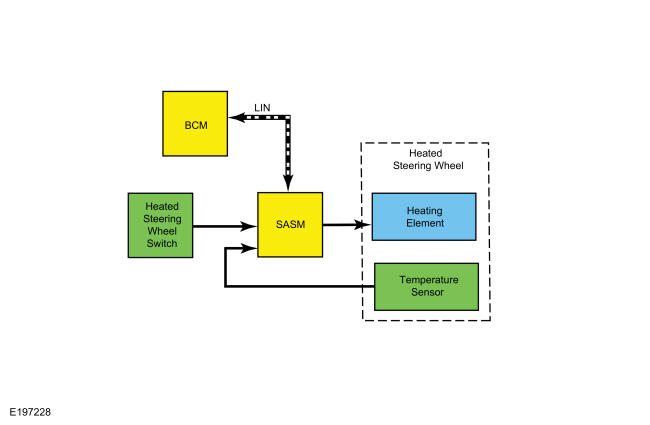

GFD264661Courtesy of FORD MOTOR COMPANY
Item Description
1 LIN
2 Heated Steering Wheel
3 SASM
4 BCM
5 Temperature Sensor
6 Heating Element
7 Heated Steering Wheel Switch
