System Diagram - Conventional Ignition Switch

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

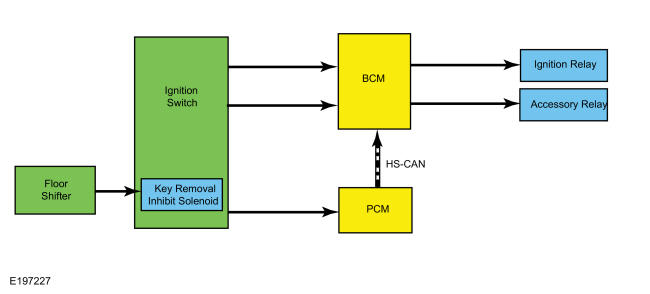

GFD264660Courtesy of FORD MOTOR COMPANY
Item Description
1 HS-CAN
2 Ignition Switch
3 Floor Shifter
4 Ignition Relay
5 Accessory Relay
6 BCM
7 PCM
8 Key Removal Inhibit Solenoid
