Steering Column: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the SASM. Refer to: Steering Angle Sensor Module (SASM) .
  2. Remove the driver knee airbag. Refer to: Driver Knee Airbag .
  3. Remove the retainers and the steering column opening trim panel.

    • Disconnect and position aside the air sensor.

    GFD264648Courtesy of FORD MOTOR COMPANY

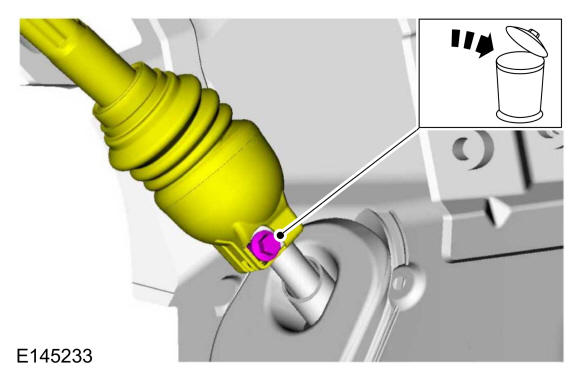

  4. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the steering column shaft coupler bolt and separate the coupler from the steering shaft.

    Torque

    : 21 lb.ft (28 Nm)

    GFD264649Courtesy of FORD MOTOR COMPANY

    Vehicles with keyless entry

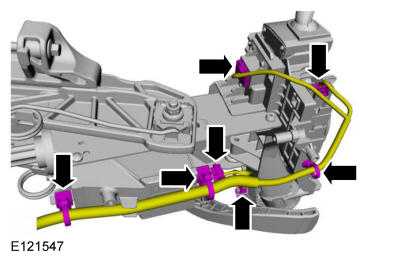

  5. Remove the retainers and disconnect the steering column electrical connectors.
    GFD264650Courtesy of FORD MOTOR COMPANY

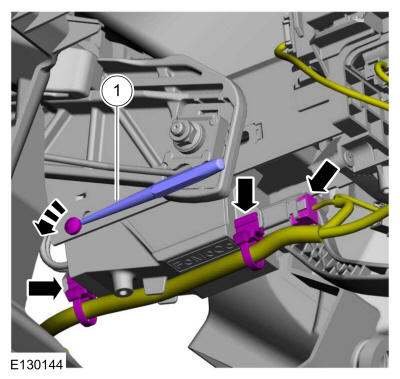

  6. NOTE: This step is only necessary when installing a new component.
    NOTE: If equipped with steering column lock module.

    On both sides. Loosen the retainers. Use the General Equipment: Center Punch

    GFD264651Courtesy of FORD MOTOR COMPANY
  7. NOTE: This step is only necessary when installing a new component.
    NOTE: If equipped with steering column lock module.

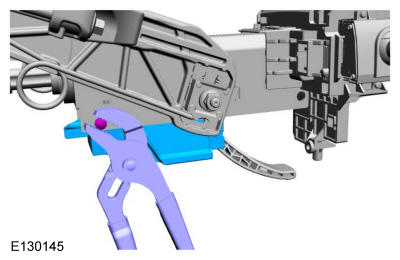

    On both sides. Remove the retainers and the steering column lock module.

    GFD264652Courtesy of FORD MOTOR COMPANY

    Vehicles without keyless entry

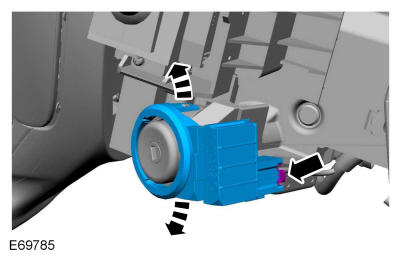

  8. NOTE: This step is only necessary when installing a new component.

    If equipped. Remove the ignition lock cylinder cover.

    GFD264653Courtesy of FORD MOTOR COMPANY

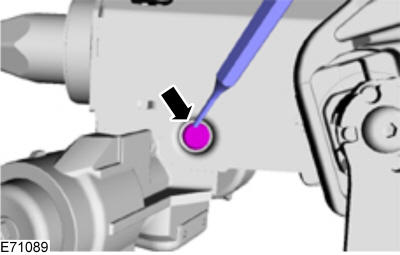

  9. NOTE: This step is only necessary when installing a new component.

    Loosen the ignition lock cylinder housing retainer. Use the General Equipment: Center Punch

    GFD264654Courtesy of FORD MOTOR COMPANY

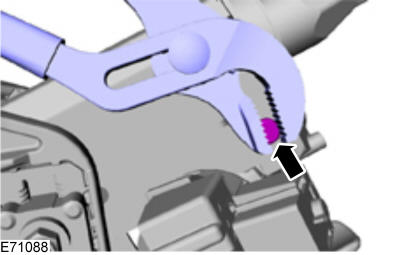

  10. NOTE: This step is only necessary when installing a new component.

    Remove the ignition lock cylinder housing retainer.

    GFD264655Courtesy of FORD MOTOR COMPANY

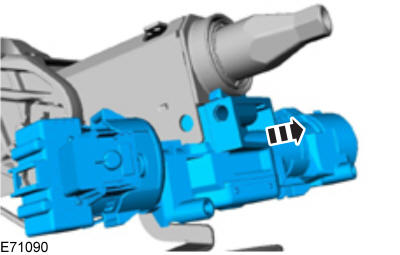

  11. NOTE: This step is only necessary when installing a new component.

    Remove the ignition lock cylinder housing.

    GFD264656Courtesy of FORD MOTOR COMPANY

    All vehicles

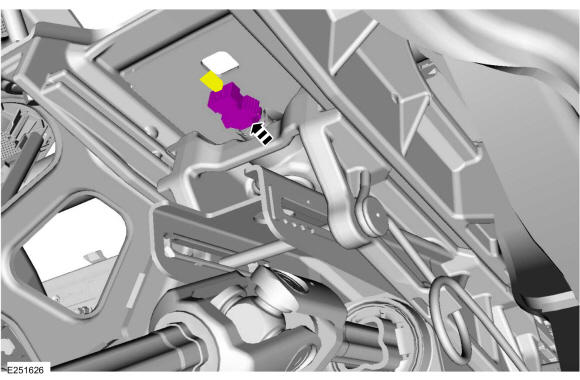

  12. Disconnect the electrical connector at the back of the steering column.
    GFD264657Courtesy of FORD MOTOR COMPANY

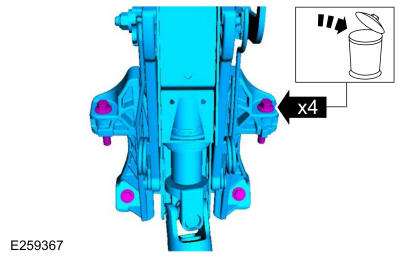

  13. Remove and discard the steering column retainers and remove the steering column.

    Torque

    : 18 lb.ft (25 Nm)

GFD264658Courtesy of FORD MOTOR COMPANY
