Tie Rod: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Place the steering gear at the center position and hold the steering gear rack while loosening or tightening the inner tie rod. Use an appropriate-sized wrench on the flat/teeth of the rack to resist rotation and to prevent damage during removal of the inner tie rod.

NOTE: Use an assistant to hold the steering gear rack on the Left Hand (LH) side when servicing the Right Hand (RH) inner tie rod.

NOTE: Crowfoot-style inner tie-rod tool shown.

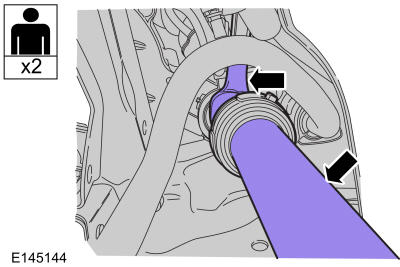

Install the tie rod. Use the General Equipment: Tie Rod Remover and Installer

Torque

: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure to install the O-ring seal provided with the bellows boot kit or a leak may occur.

Install the O-ring seal provided with the bellows boot kit.

Courtesy of FORD MOTOR COMPANY

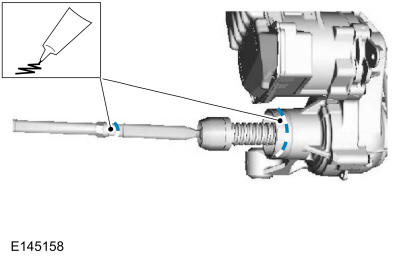

Apply the specified grease to the steering gear-to-bellows boot mating surface and bellows boot groove on the inner tie-rod.
Material

: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

Courtesy of FORD MOTOR COMPANY

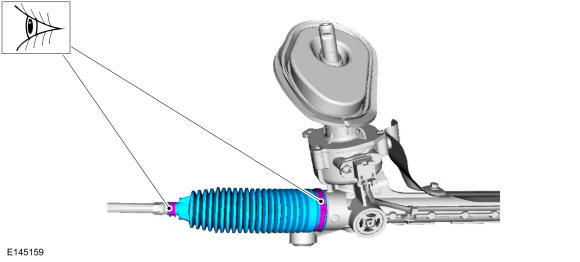

NOTE: Make sure the steering gear bellows is positioned correctly over the steering gear housing bead and the grooves in the inner tie-rod casting.
NOTE: Make sure the end of the steering gear bellows boot is positioned between the 2 grooves on the inner tie rod or an internal leak may occur.

Install the new steering gear bellows boot and new clamps. Use the General Equipment: Boot Clamp Pliers

Courtesy of FORD MOTOR COMPANY
Thread the tie rod end jam nut onto the tie rod.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the outer tie rod the same number of turns recorded during removal.

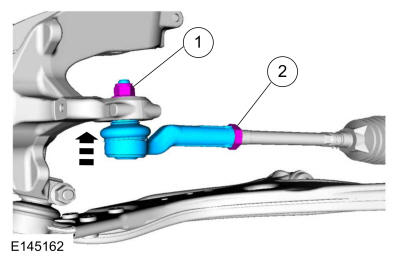

1. Install the outer tie rod end nut.
  Torque

  : 35 lb.ft (48 Nm)
2. Tighten the tie rod end jam nut.
  Torque

  : 66 lb.ft (90 Nm)
Courtesy of FORD MOTOR COMPANY

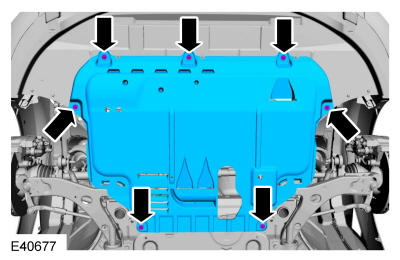

If equipped. Install the under body shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Check and if necessary, adjust front toe. Refer to: Front Toe Adjustment .
