Steering Gear: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front subframe. Refer to: Front Subframe . Refer to: Front Subframe - RS .

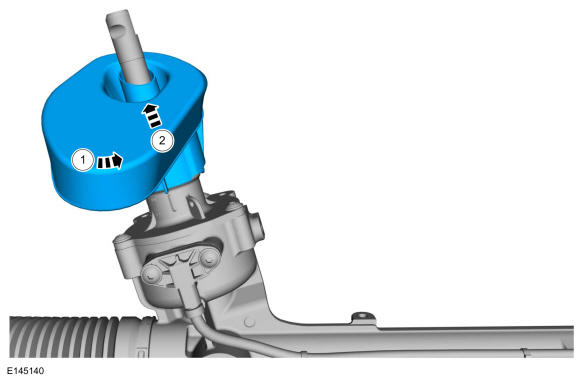

  2. Remove the steering gear boot as shown.
    GFD264629Courtesy of FORD MOTOR COMPANY

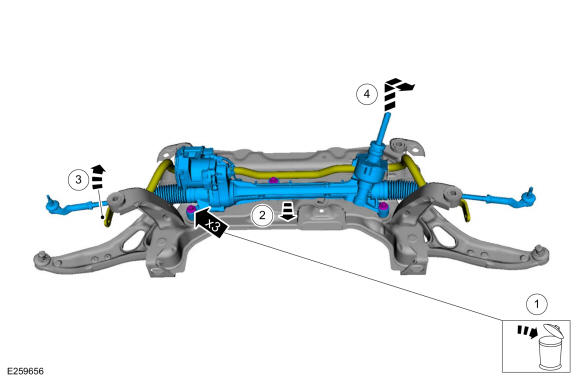

    1. Remove and discard the steering gear bolts.
    2. Position the steering gear forward.
    3. Lift and hold the front stabilizer bar upward slightly to gain clearance for steering gear removal.
    4. Remove the steering gear.
GFD264630Courtesy of FORD MOTOR COMPANY
