Steering Gear: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

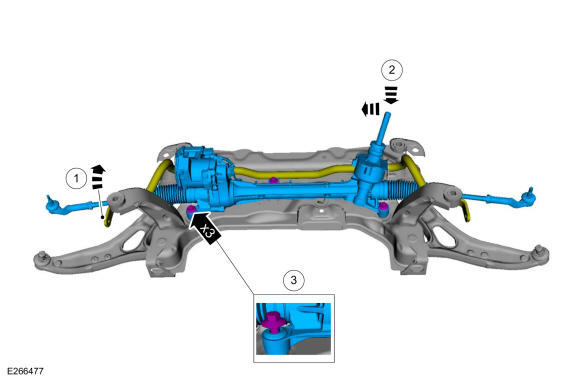

1. Lift and hold the front stabilizer bar upward slightly to gain clearance for steering gear installation.
2. Install the steering gear.
3. Install the new steering gear bolts finger tight.
Courtesy of FORD MOTOR COMPANY

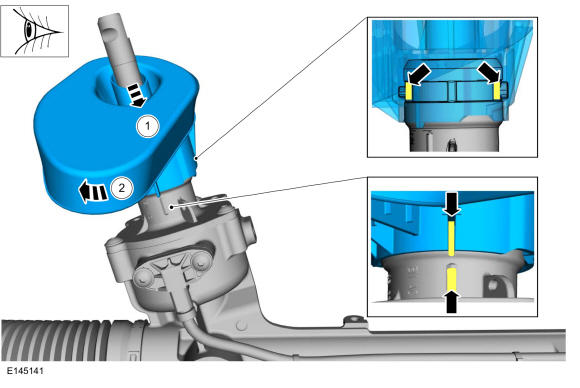

Check and install the steering gear boot on steering gear as shown.

Courtesy of FORD MOTOR COMPANY

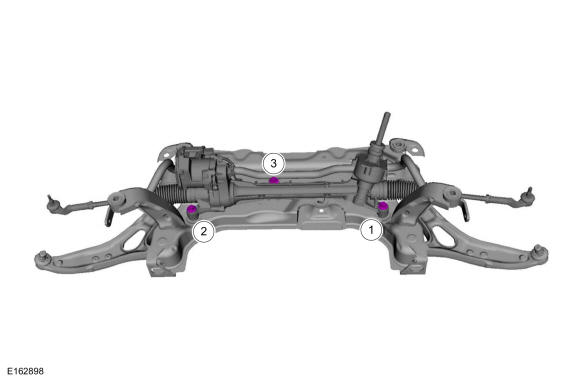

With all 3 bolts finger tightened, complete all 4 stages of the tightening sequence first on bolt 1, then bolt 2 then bolt 3 as shown below.
1. Tighten the steering gear bolt.
  Torque

  :Stage 1: 81 lb.ft (110 Nm) Stage 2: Loosen: 360° Stage 3: 41 lb.ft (56 Nm) Stage 4: 180°
2. Tighten the steering gear bolt.
  Torque

  :Stage 1: 81 lb.ft (110 Nm) Stage 2: Loosen: 360° Stage 3: 41 lb.ft (56 Nm) Stage 4: 180°
3. Tighten the steering gear bolt.
  Torque

  :Stage 1: 81 lb.ft (110 Nm) Stage 2: Loosen: 360° Stage 3: 41 lb.ft (56 Nm) Stage 4: 180°
Courtesy of FORD MOTOR COMPANY
Install the front subframe. Refer to: Front Subframe . Refer to: Front Subframe - RS .
