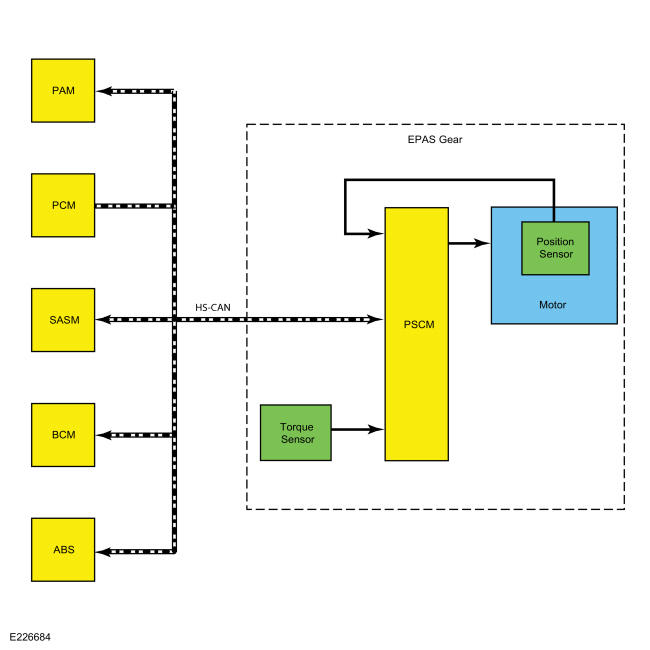

System Diagram
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
EPAS gear |
| 2 |
EPAS motor |
| 3 |
EPAS motor position sensor |
| 4 |
Steering torque sensor |
| 5 |
PSCM |
| 6 |
ABS module |
| 7 |
BCM |
| 8 |
PAM |
| 9 |
SASM |
| 10 |
PCM |
