Rear Wheel Speed Sensor - RS: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

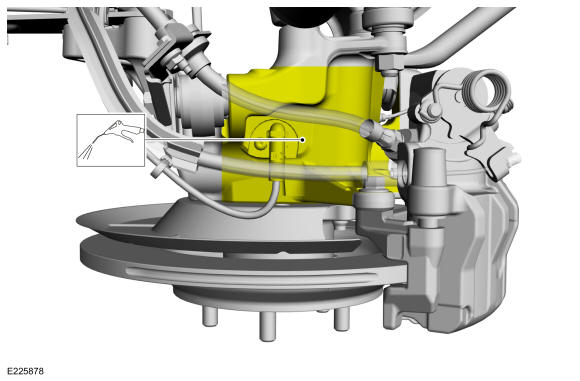

  2. NOTE: When servicing the wheel speed sensor, make sure the area around the wheel speed sensor and the wheel speed sensor housing are clean and free of debris or contamination may occur causing damage to wheel speed sensor or wheel bearing.

    Using compressed air, clean the sensor housing area.

    GFD264624Courtesy of FORD MOTOR COMPANY

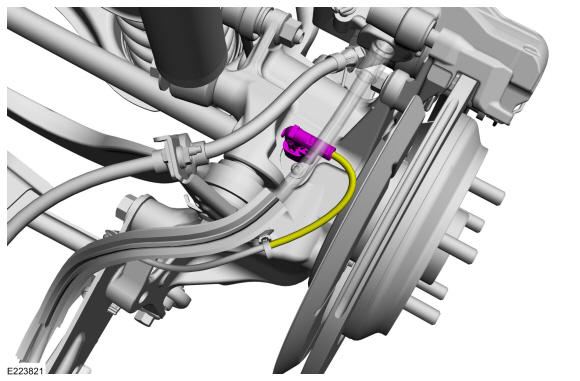

  3. Disconnect the electrical connector.
    GFD264625Courtesy of FORD MOTOR COMPANY

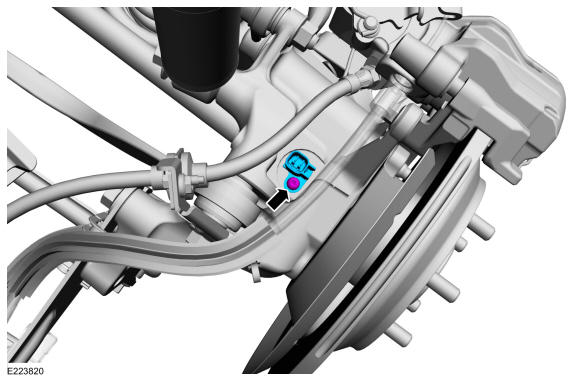

  4. Remove the bolt and the rear wheel speed sensor.

    Torque

    : 44 lb.in (5 Nm)

    GFD264626Courtesy of FORD MOTOR COMPANY

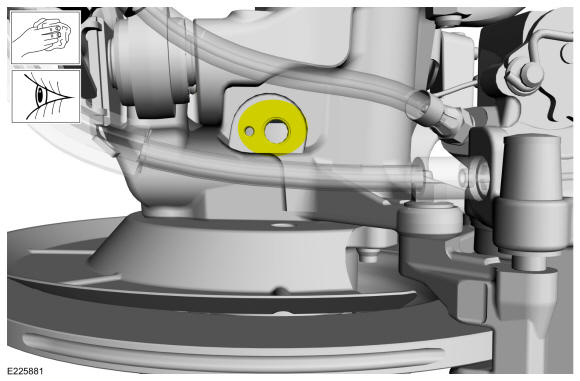

  5. NOTE: Make sure that the sensor housing is clean and free of foreign material before installing the wheel speed sensor or contamination may occur causing damage to wheel speed sensor or wheel bearing.
GFD264627Courtesy of FORD MOTOR COMPANY
