Front Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .
  2. NOTE: Make sure that the sensor housing is clean and free of foreign material.

    1. Disconnect the electrical connector.
    2. Remove the bolt and the front wheel speed sensor.

      Torque

      : 42 lb.in (4.8 Nm)

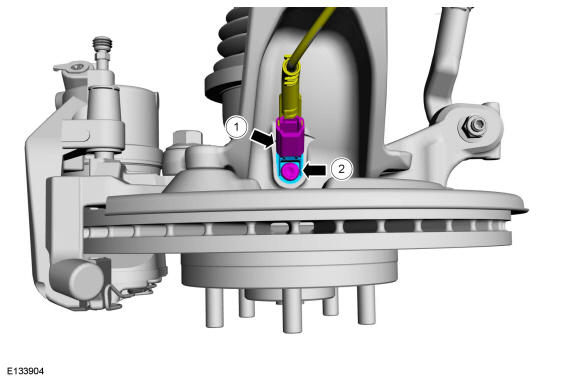

GFD264613Courtesy of FORD MOTOR COMPANY
