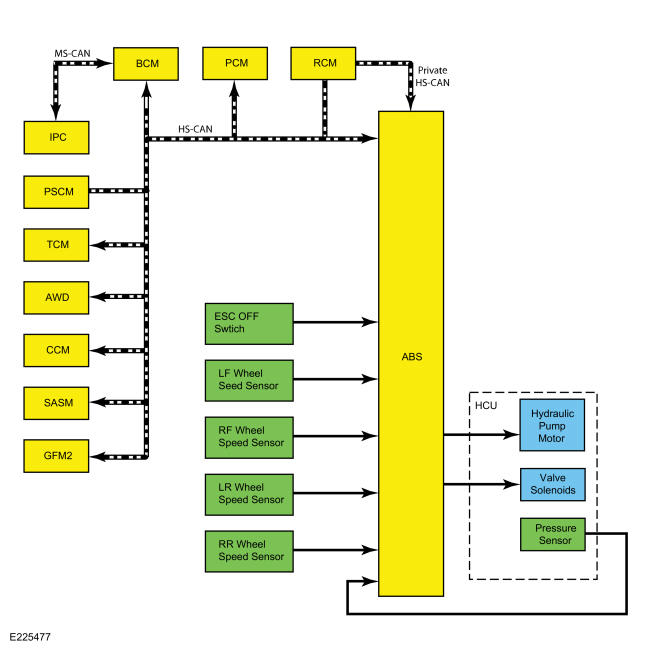

System Diagram - ABS and Stability Control
| Item | Description |
|---|---|
| 1 | HCU |
| 2 | RCM |
| 3 | BCM |
| 4 | PCM |
| 5 | SASM |
| 6 | Hydraulic pump motor |
| 7 | Hydraulic pressure sensor |
| 8 | Hydraulic valve solenoids |
| 9 | ABS module |
| 10 | PSCM |
| 11 | RH rear wheel speed sensor |
| 12 | LH rear wheel speed sensor |
| 13 | RH front wheel speed sensor |
| 14 | LH front wheel speed sensor |
| 15 | ESC OFF switch |
| 16 | CCM |
| 17 | AWD relay module |
| 18 | IPC |
| 19 | TCM |
| 20 | GFM2 |

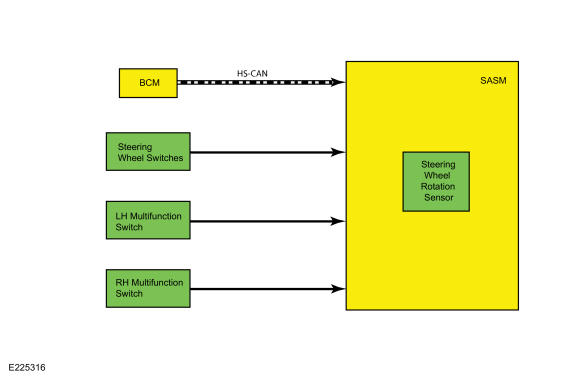

System Diagram - SASM
| Item | Description |
|---|---|
| 1 | Steering wheel switches |
| 2 | LH multifunction switch |
| 3 | BCM |
| 4 | RH multifunction switch |
| 5 | SASM |
| 6 | Steering wheel rotation sensor |
