Brake Vacuum Pump - 2.3L EcoBoost (257kW/350PS) - MI4: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

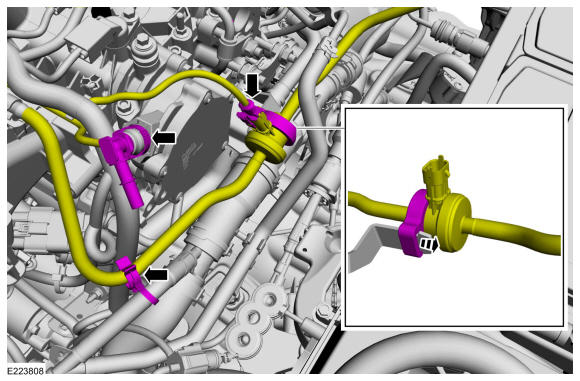

 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|

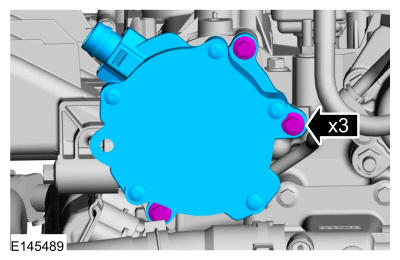

Torque
: 89 lb.in (10 Nm)
 Courtesy of FORD MOTOR COMPANY
|

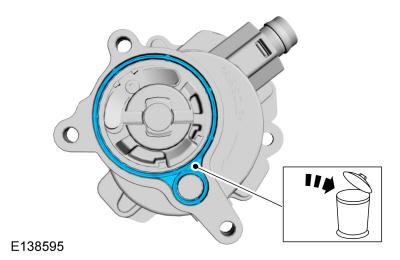

NOTE:
Make sure that a new component is installed.
NOTE:
Make sure that the mating faces are clean and free of foreign material.
 Courtesy of FORD MOTOR COMPANY
|
