Brake Vacuum Pump - 2.0L EcoBoost (184kW/250PS) - MI4: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

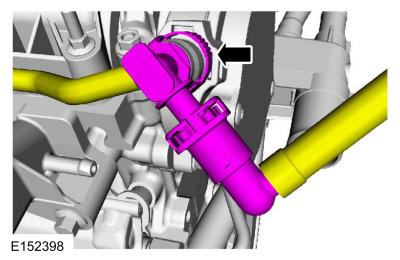

- Squeeze the sides of the coupling and disconnect the vacuum tube.

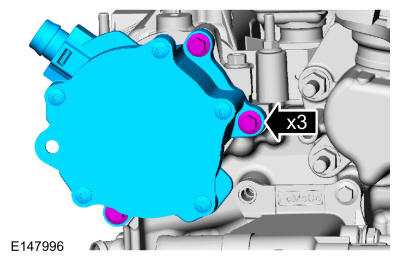

- Remove the bolts and the brake vacuum pump.
Torque
: 89 lb.in (10 Nm)
- Inspect the gasket and install a new gasket as necessary.
