Brake Vacuum Pump - 1.0L EcoBoost (90kW/120PS): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

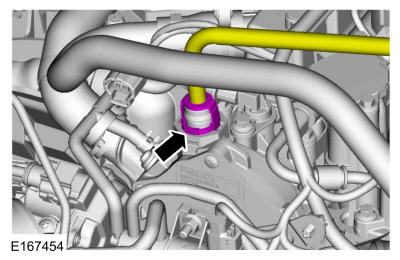

Squeeze the sides of the coupling and disconnect the vacuum tube.

Courtesy of FORD MOTOR COMPANY

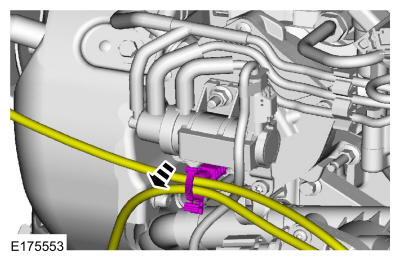

Detach the wiring retainer.

Courtesy of FORD MOTOR COMPANY
- NOTE: Use care when disconnecting the vacuum hose from the vacuum pump or damage to the valve may occur. If the valve is broken and a new pump is not being installed, the valve can be replaced separately.

  Release the clamp and disconnect the vacuum hose.

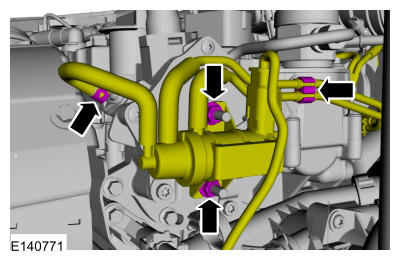

- Detach the wiring and vacuum hose retainers.
- Remove the nuts and position the vacuum control regulator aside.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.

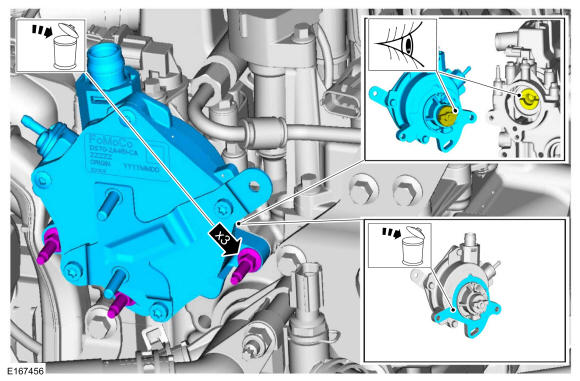

1. Remove the bolts and the brake vacuum pump. Discard the bolts.
  Torque

  : 89 lb.in (10 Nm)
2. Remove and discard the gasket.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the mating surfaces are clean and free of foreign material and thread lock residue is cleaned from the bolt holes.

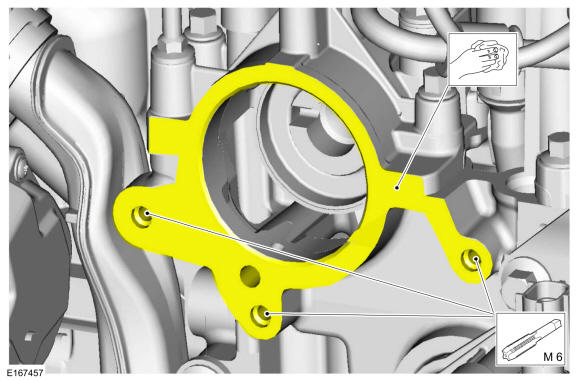

Clean the mating surfaces and tap the bolt holes.

Material

: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
