Brake Vacuum Pump - 1.0L EcoBoost (90kW/120PS): Installation
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.
-
NOTE: If the brake vacuum pump is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Failure to follow this procedure can cause future oil leakage.

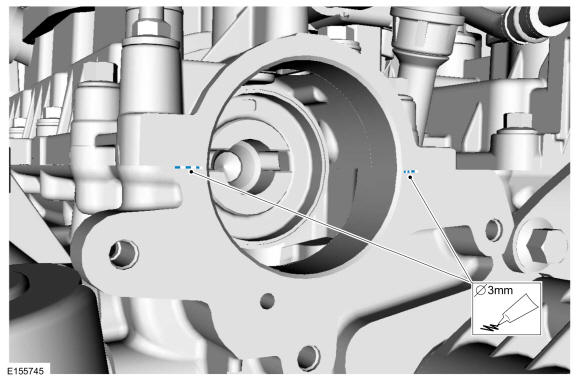

Apply an 3mm bead of the specified sealant in the location shown.
Material
: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)
