Parking Brake Cable - Vehicles With: Rear Disc Brakes: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Apply the parking brake and remove the parking brake control lever boot.

Courtesy of FORD MOTOR COMPANY
Release the parking brake and loosen the parking brake cable adjustment nut.

Courtesy of FORD MOTOR COMPANY
Remove the rear wheels and tires. Refer to: Wheel and Tire .
Remove and discard the nuts, detach the exhaust pipe and discard the gasket.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

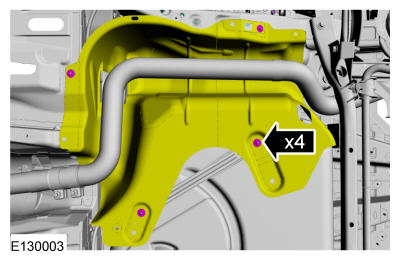

Remove the nuts and position the exhaust heat shield forward.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

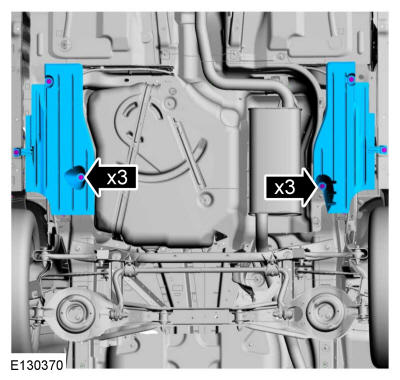

Remove the bolts and the underbody shield on both sides.

Courtesy of FORD MOTOR COMPANY
Remove the nuts and lower the exhaust heat shield.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

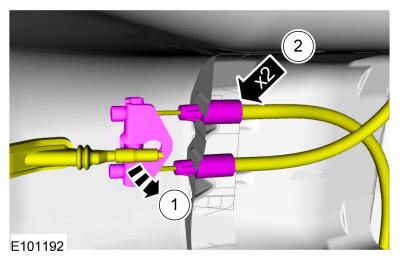

Detach the front parking brake cable from the equalizer and detach the rear parking brake cables from the body.

Courtesy of FORD MOTOR COMPANY
Detach the parking brake cables from the brake calipers on both sides.
1. Rotate the brake caliper lever.
2. Detach the parking brake caliper from the brake caliper lever.
3. Detach the parking brake cable from the brake caliper bracket.
Courtesy of FORD MOTOR COMPANY

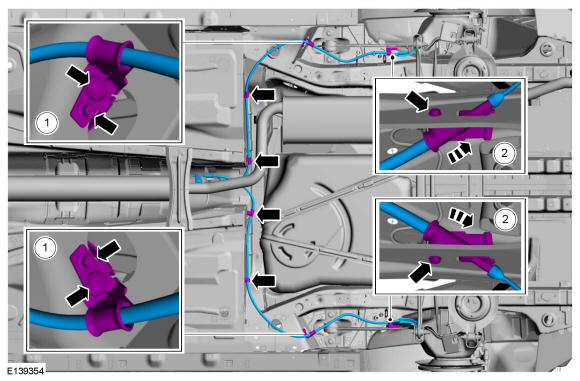

1. Remove the bolts and detach the parking brake cable brackets from the body on both sides.
  Torque

  : 97 lb.in (11 Nm)
2. Remove the bolts and detach the parking brake cable brackets from the suspension arms on both sides.
  Torque

  : 17 lb.in (1.9 Nm)
- Detach the remaining parking brake cable brackets and remove the parking brake cables.

Courtesy of FORD MOTOR COMPANY
