Parking Brake Cable - RS: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

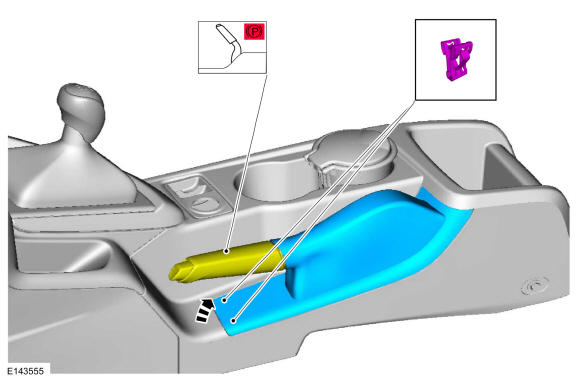

Apply the parking brake and remove the parking brake control lever boot.

Courtesy of FORD MOTOR COMPANY

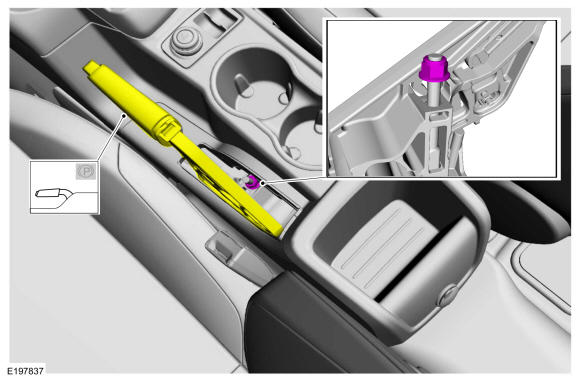

Release the parking brake and loosen the parking brake cable adjustment nut.

Courtesy of FORD MOTOR COMPANY
Remove the rear wheels and tires. Refer to: Wheel and Tire .

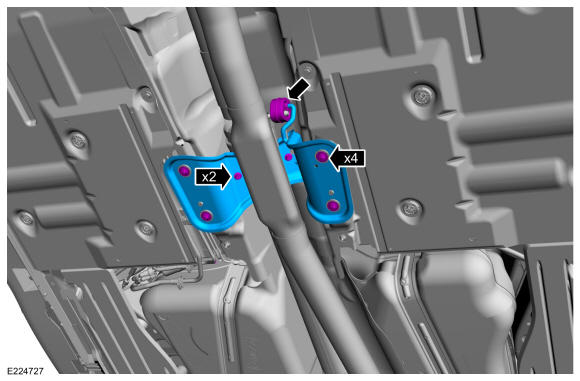

Remove the bolts and the bracket.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

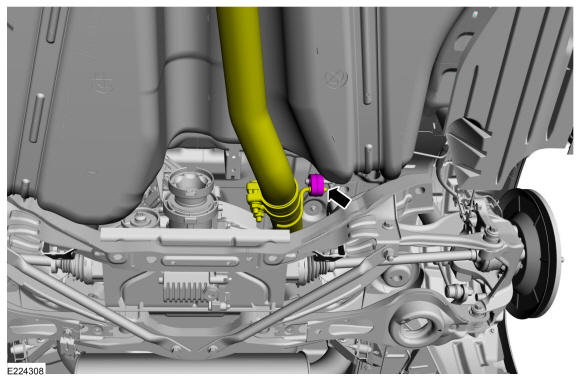

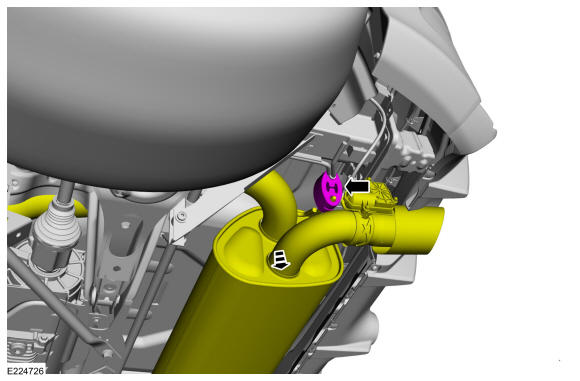

Remove the nuts and lower the front exhaust heat shield. Remove the rear exhaust heat shield.

Courtesy of FORD MOTOR COMPANY

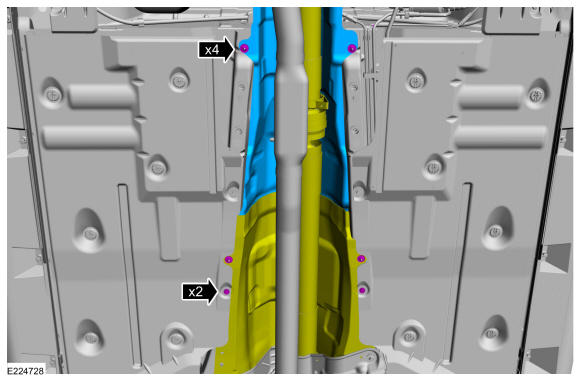

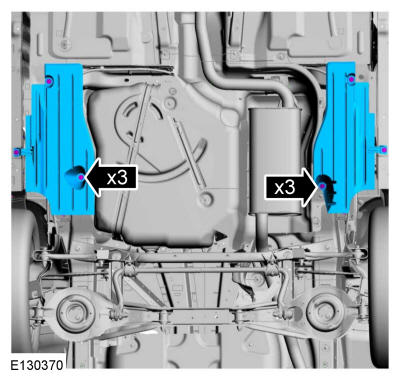

Remove the bolts and the underbody shield on both sides.

Courtesy of FORD MOTOR COMPANY

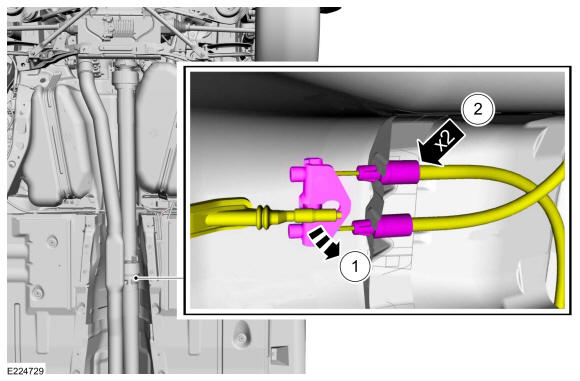

Detach the front parking brake cable from the equalizer and detach the rear parking brake cables from the body.

Courtesy of FORD MOTOR COMPANY

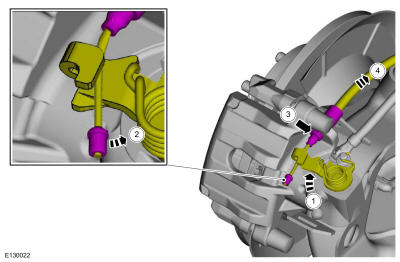

Detach the parking brake cables from the brake calipers on both sides.
1. Rotate the brake caliper lever.
2. Detach the parking brake caliper from the brake caliper lever.
3. Detach the parking brake cable from the brake caliper bracket.
Courtesy of FORD MOTOR COMPANY

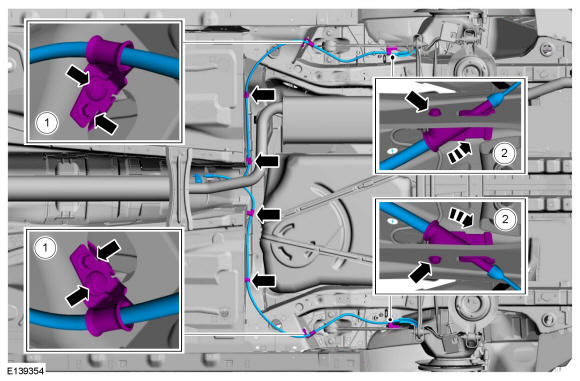

1. Remove the bolts and detach the parking brake cable brackets from the body on both sides.
  Torque

  : 97 lb.in (11 Nm)
2. Remove the bolts and detach the parking brake cable brackets from the suspension arms on both sides.
  Torque

  : 17 lb.in (1.9 Nm)
- Detach the remaining parking brake cable brackets and remove the parking brake cables.

Courtesy of FORD MOTOR COMPANY
