Parking Brake Cable Adjustment - Vehicles With: Rear Drum Brakes

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

  1. Apply the parking brake and remove the parking brake control lever boot.
    GFD264554Courtesy of FORD MOTOR COMPANY
  2. Release the parking brake and loosen the parking brake cable adjustment nut.
    GFD264555Courtesy of FORD MOTOR COMPANY
  3. Refer to: Brake Shoe Adjustment .

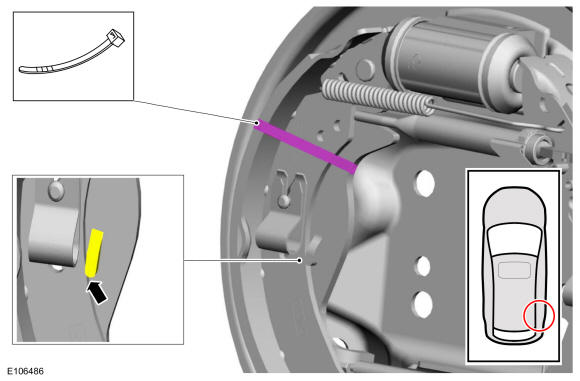

  4. Install a cable tie around the RH rear brake shoe and the parking brake lever.
    GFD264556Courtesy of FORD MOTOR COMPANY

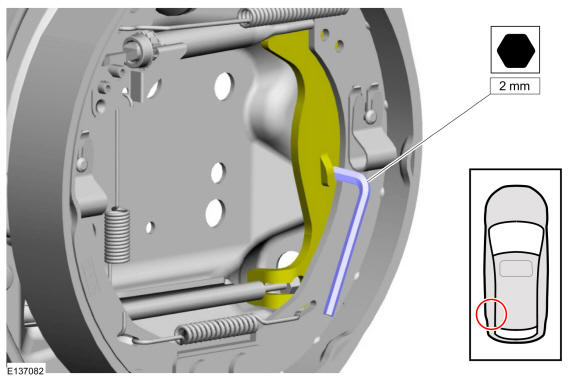

  5. Insert a 2mm hex wrench between the abutment on the LH parking brake lever and the brake shoe.
    GFD264557Courtesy of FORD MOTOR COMPANY

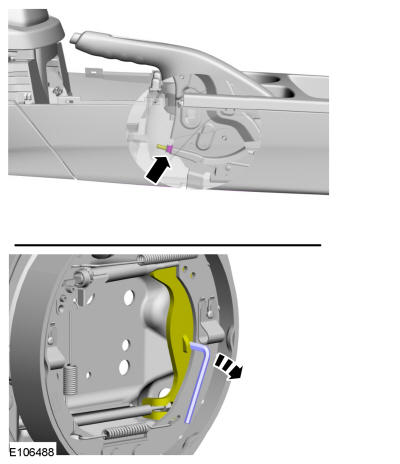

  6. Tighten the parking brake cable adjustment nut until the hex wrench falls.
    GFD264558Courtesy of FORD MOTOR COMPANY

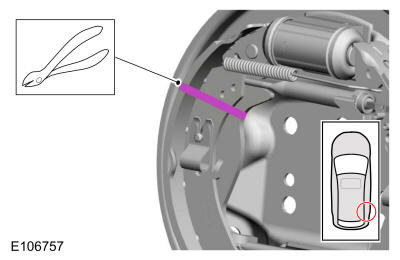

  7. Cut and remove the cable tie.
    GFD264559Courtesy of FORD MOTOR COMPANY
  8. Apply the parking brake, install the parking brake lever boot and then release the parking brake.
GFD264560Courtesy of FORD MOTOR COMPANY
