Parking Brake Cable Adjustment - Vehicles With: Rear Disc Brakes

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

  1. Apply the parking brake and remove the parking brake control lever boot.

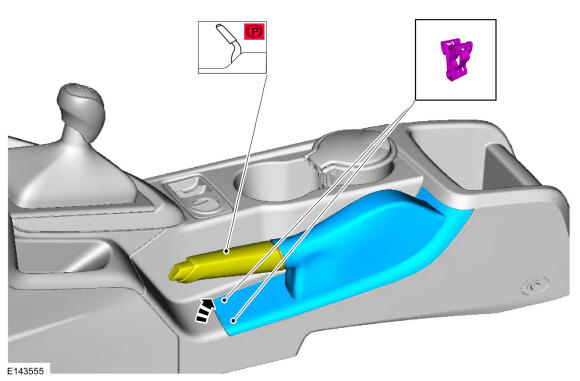

    GFD264554Courtesy of FORD MOTOR COMPANY
  2. Release the parking brake and loosen the parking brake cable adjustment nut.

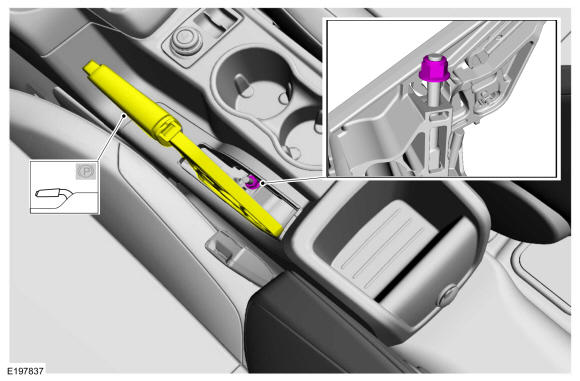

    GFD264555Courtesy of FORD MOTOR COMPANY
  3. Refer to: Jacking and Lifting - Overview .
  4. NOTE: Make sure the parking brake control is fully released.
    NOTE: This step requires the aid of another technician.

    1. Insert a 0.7 mm feeler gauge between the parking brake lever and the brake caliper abutment, on both sides.
    2. Tighten the parking brake cable adjustment nut until movement is observed on one of the parking brake levers.
    3. Remove the feeler gauges.

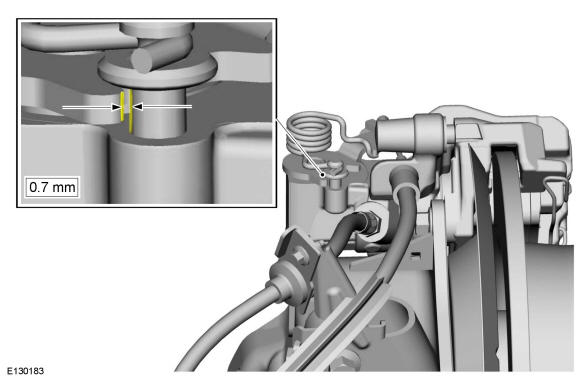

    GFD264561Courtesy of FORD MOTOR COMPANY
  5. Apply the parking brake, install the parking brake lever boot and then release the parking brake.
GFD264560Courtesy of FORD MOTOR COMPANY
