Rear Brake Pads: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Health and Safety Precautions .
  2. Remove the wheel and tire. Refer to: Wheel and Tire .
  3. Remove the brake caliper spring.
    GFD264536Courtesy of FORD MOTOR COMPANY
  4. NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.
    NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    1. Remove the caps.
    2. Remove the brake caliper guide pin bolts.

      Torque

      : 21 lb.ft (28 Nm)

    3. Position aside the brake caliper.

    GFD264537Courtesy of FORD MOTOR COMPANY
  5. Remove the brake pads.
    GFD264538Courtesy of FORD MOTOR COMPANY

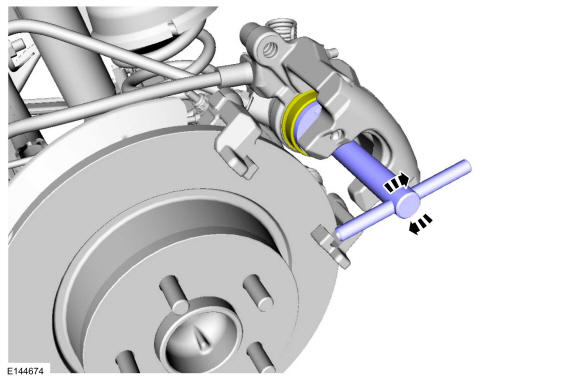

  6. Retract the brake caliper piston into the brake caliper bore. Use the General Equipment: Brake Caliper Piston Retractor
GFD264544Courtesy of FORD MOTOR COMPANY
