Rear Brake Pads - RS: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Wheel and Tire
.
-

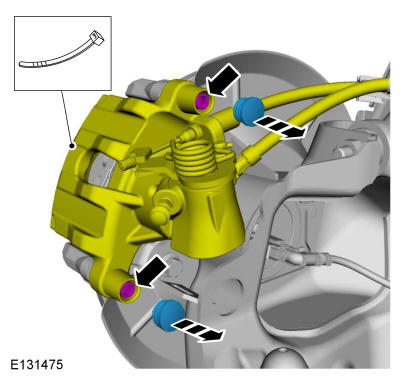

NOTE: Make sure that no load is placed on the brake hose.
Torque
: 20 lb.ft (27 Nm)
-
NOTE: Make sure that the mating faces are clean and free of foreign material.

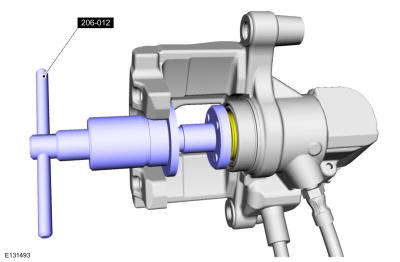

- Use Special Service Tool: 206-012 Retractor, Rear Brake Caliper Piston.
