Rear Brake Caliper: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Health and Safety Precautions .
  2. Remove the rear brake flexible hose. Refer to: Rear Brake Flexible Hose  .
  3. On both sides.

    1. Rotate the brake caliper lever.
    2. Detach the parking brake cable from the brake caliper lever.
    3. Detach the parking brake cable from the brake caliper bracket.

    GFD264542Courtesy of FORD MOTOR COMPANY

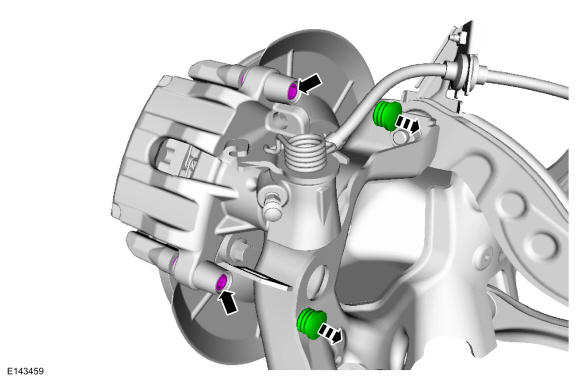

    1. Remove the caps.
    2. Remove the brake caliper guide pin bolts.

      Torque

      : 21 lb.ft (28 Nm)

GFD264543Courtesy of FORD MOTOR COMPANY
