Rear Brake Caliper Anchor Plate - RS: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Steps in the removal procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .
Remove the brake caliper spring.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

NOTE: Make sure that new bolts are installed.
1. Remove the caps.
2. Remove the brake caliper guide pin bolts.
  Torque

  : 20 lb.ft (27 Nm)
3. Position aside the brake caliper.
Courtesy of FORD MOTOR COMPANY
Remove the brake pads.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

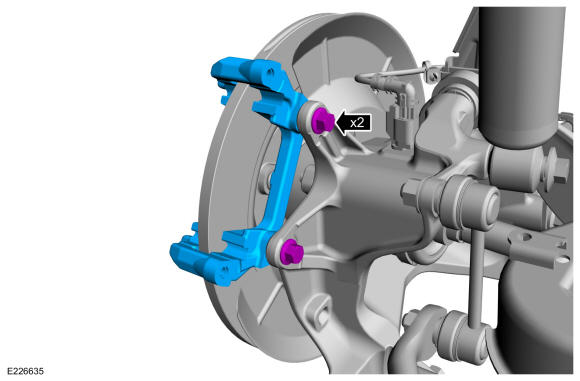

Remove the bolts and the brake caliper anchor plate.

Torque

:Stage 1: 22 lb.ft (30 Nm) Stage 2: 90°

Courtesy of FORD MOTOR COMPANY
