Rear Brake Caliper - RS: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Wheel and Tire .
- Loosen: 90°
On both sides.

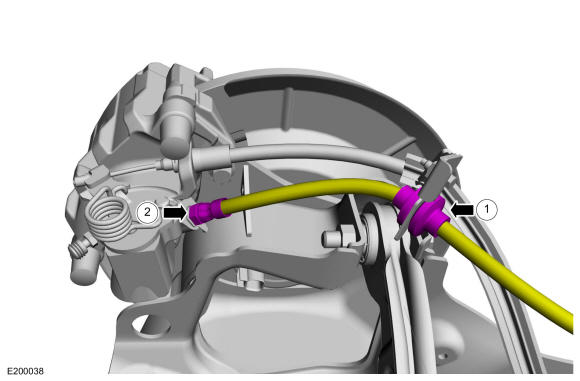

- Rotate the brake caliper lever.

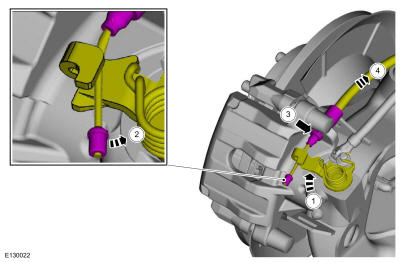

- Detach the parking brake cable from the brake caliper lever.

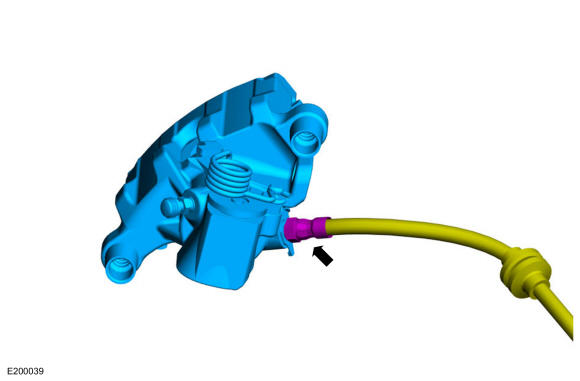

- Detach the parking brake cable from the brake caliper bracket.
NOTE:
Make sure that no load is placed on the brake hose.

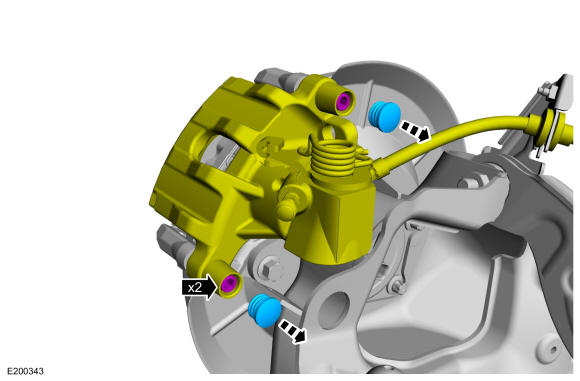

Torque
: 21 lb.ft (28 Nm)
Torque
: 21 lb.ft (28 Nm)
