Front Brake Pads - RS: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .

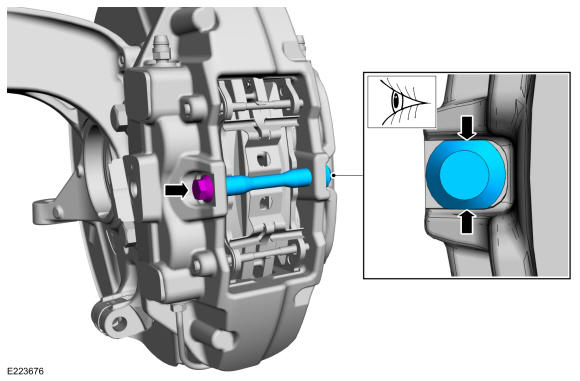

Use the General Equipment: Punch
Torque

: 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY

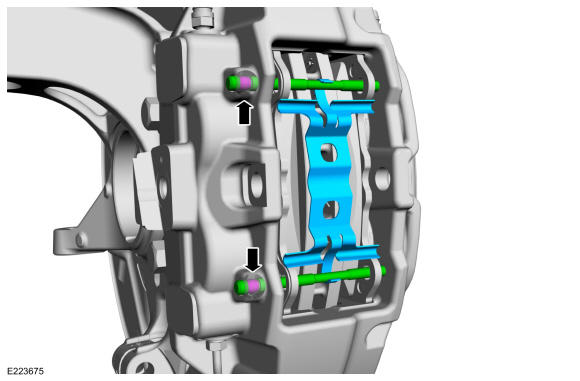

Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY

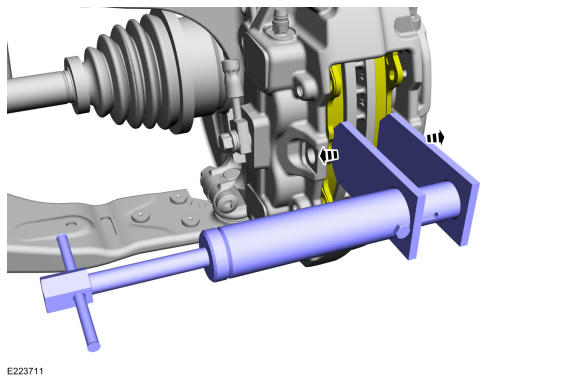

Use the General Equipment: Brake Caliper Piston Retractor

Courtesy of FORD MOTOR COMPANY

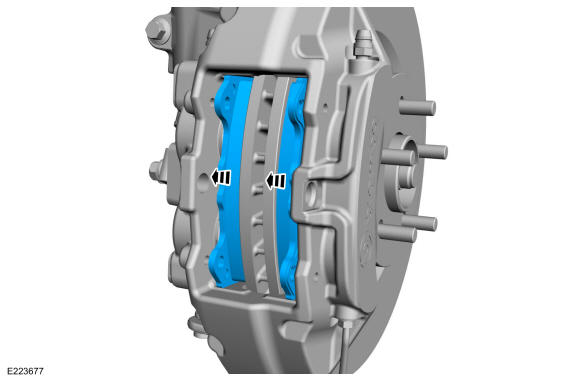

Remove the brake pads.

Courtesy of FORD MOTOR COMPANY
